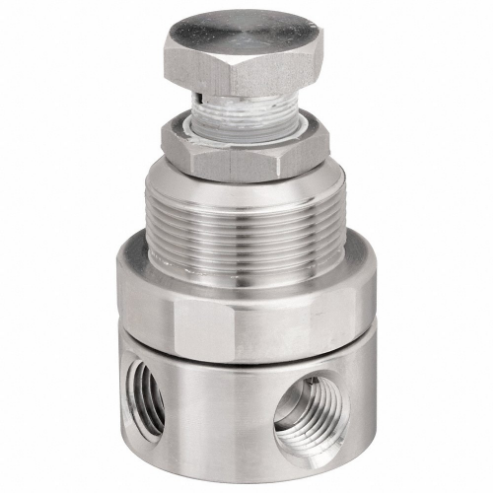

| Item | Air Regulator |
| Adjustment Knob | Hex |
| Adjustment Mechanism | Knob |
| Adjustment Range | 0 psi to 125 psi |
| Adjustment Range - Regulators | 0 psi to 125 psi |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/4" |
| Air Outlet Gender | Female |
| Air Outlet Size | 1/4" |
| Body Material | Stainless Steel |
| For Fluid Type | Air |
| For Substance Type | Air |
| Max. Flow - Regulators | 12 CFM |
| Max. Flow Rate | 12 CFM |
| Max. Inlet Pressure - Regulators | 300 psi |
| Max. Operating Pressure | 300 psi |
| Max. Pressure | 300 psi |
| Max. Regulated Pressure | 125 psi |
| Max. Temp. | 150°F |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Overall Depth | 1 9/16" |
| Overall Height | 2 11/16" , 2.67" |
| Overall Length | 1 14/25" |
| Overall Width | 1 14/25" , 1 9/16" |
| Overall Width - Regulators | 1 14/25" |
| Pipe Size - Regulators | 1/4" |
| Pressure Drop | 15 psig |
| Pressure Gauge Included | No |
| Pressure Gauge Port Size | 1/8" |
| Regulator Type | Relieving |
| Seal Material | Fluorocarbon |
| System Location | Air Line |
| Valve Design | Unbalanced |
| Adjustment Mechanism Material | Grade 316 Stainless Steel |
| Air Outlet Type | NPT |
| Maximum Flow Rate | 12 CFM |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 180°F |
| Maximum Regulated Pressure | 125 psi |
| Minimum Operating Temperature | 0°F |
| Minimum Regulated Pressure | 0 psi |
| Pressure Gauge Port Type | NPT |
| Series | SR1 Series |
| Weight | 0.5 lbs. |
| Ship weight (kg) | 0.37 |
| Ship height (cm) | 6.83 |
| Ship length (cm) | 3.97 |
| Ship width (cm) | 3.97 |
| HS code | 8481100060 |
| Country of Origin | US |
| Product | Model | Adjustment Range | Body Material | Max. Flow | Max. Temp. | Overall Height | Overall Length | Overall Width | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SR1-02-KAS0 | 0 to 60 psi | Stainless Steel | 12 cfm | 150 Degrees F | 2.67" | 1.56" | 1.56" | 1/4" NPT | €619.54 | |
 |
SR2-04-LAS0 | 0 to 125 psi | Stainless Steel | 80 cfm | 150 Degrees F | 6.08" | 2.43" | 2.34" | 1/2" NPT | €1,931.99 | |
 |
SR2-04-KAS0 | 0 to 60 psi | Stainless Steel | 80 cfm | 150 Degrees F | 6.08" | 2.43" | 2.34" | 1/2" NPT | €1,874.28 | |
 |
R30-08-G00 | - | - | - | - | - | - | - | - | €593.73 |
