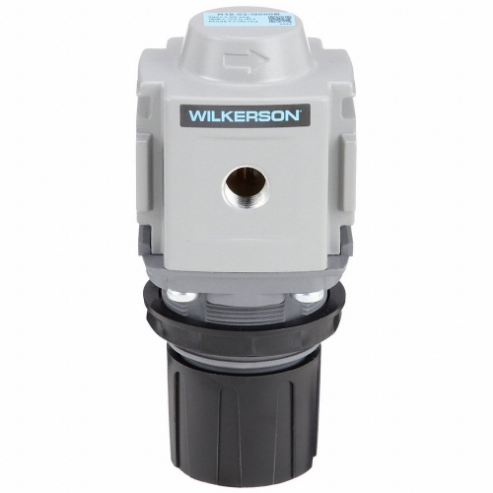

| Item | Air Loaded Pressure Regulator |
| Adjustment Knob | Non Rising , Nonrising |
| Adjustment Mechanism | Nonrising |
| Adjustment Range | 0 psi to 125 psi |
| Air Flow Direction | Left To Right |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/4" |
| Air Outlet Gender | Female |
| Air Outlet Size | 1/4" |
| Body Material | Aluminum |
| For Fluid Type | Air |
| For Substance Type | Air |
| Includes | Panel Nut |
| Modular Connection | Modular Connection |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Overall Length | 5.18" |
| Overall Width - Regulators | 2 9/25" |
| Pipe Size - Regulators | 1/4" |
| Pressure Gauge Included | No |
| Pressure Gauge Port Size | 1/4" |
| Regulator Type | Relieving |
| Valve Design | Relieving |
| Air Outlet Type | NPT |
| Maximum Flow Rate | 150 CFM |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Overall Depth | 2 3/8" |
| Overall Height | 5 3/8" |
| Overall Width | 2 3/8" |
| Pressure Gauge Port Type | NPT |
| Series | R18 Series |
| Standards | ATEX GROUP II CATEGORY 2, REACH, ROHS |
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 13.65 |
| Ship length (cm) | 6.03 |
| Ship width (cm) | 6.03 |
| Country of Origin | CN |
