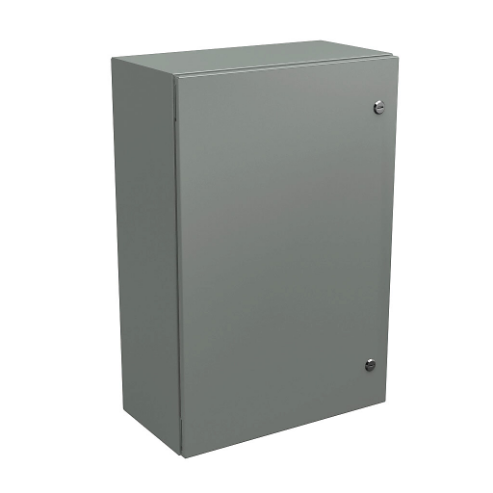

HUBBELL-WIEGMANN N412302010C Enclosure, 1/4 Turn Latch, 30 Inch Nominal Enclosure Ht, 20 Inch Nominal Enclosure Wd
Get it by Tuesday, Jun 17
€1,014.17 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Enclosure |
| Closure Method | Quater Turn Latch |
| Color | Gray |
| Cover Type | Hinged |
| Depth | 10" |
| Enclosure Cover Features | 1/4 Turn Latch |
| Enclosure Height | 30" |
| Enclosure Item | Enclosure |
| Enclosure Material | Carbon Steel |
| Enclosure Width | 20" |
| Features | Mounting Holes, Poured In Place Gasket, Turn Semi-Flush Latches |
| Finish | Polyester Powder Coat |
| Gasket | Seamless Foam In Place |
| Interior Panel | Mfr. No. NP3020C, NP3020CG |
| Knockouts / No Knockouts | No |
| Metal Gauge | 14 ga. |
| Metallic / Non-metallic | Metallic |
| Mounting | Wall |
| Nema Rating | NEMA 12, NEMA 13, NEMA 3R, NEMA 4 |
| Nominal Enclosure Width | 20" |
| Solid / Clear Cover | Solid |
| Usable Opening Depth | 10" |
| Body Material Thickness | 14 ga. |
| Compatible Panel Model Number | NP3020C, NP3020CG |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Environment | Washdown |
| Gasket Material | Seamless Foam-In-Place |
| Ip Rating | IP66 |
| Knockouts | Not Included |
| Mounting Type | Wall |
| Nema Enclosure Rating | NEMA 3R, NEMA 4, NEMA 12, NEMA 13 |
| Nominal Depth | 10" |
| Nominal Height | 30" |
| Nominal Width | 20" |
| Overall Depth | 10" |
| Overall Height | 30" |
| Overall Width | 20" |
| Product Type | Enclosure |
| Standards | CSA CERTIFIED, CULUS, IEC, UL LISTED |
| Ship weight (kg) | 27.45 |
| Ship height (cm) | 76.2 |
| Ship length (cm) | 27.74 |
| Ship width (cm) | 50.8 |
| HS code | 853810 |
| Country of Origin | US |
