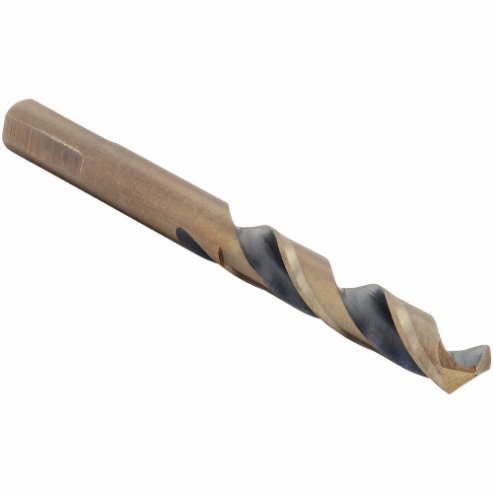

| Item | Mechanics Drill Bit |
| Application | For Alloy, Carbon And Tool Steels And Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.312" |
| Dimension Type | Fractional Inch |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Length Class | Mechanics Length |
| Drill Point | 135° |
| Finish | Black And Gold |
| Flute Length | 2 1/2" |
| Flute Type | Spiral |
| Fractional Size | 5/16" |
| Grade | Heavy Duty |
| Material | High Speed Steel |
| No. Of Pieces | 1 |
| Number Of Pieces | 1 |
| Overall Length | 4" |
| Point Angle | 135° |
| Point Type | Split Point |
| Shank Dia. | 0.312" |
| Size | 0.312" |
| System Of Measurement | Fractional Inch |
| Type | Standard |
| Depth:dia. Ratio | 4xD |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 5/16" |
| Finish - Machining | Black & Gold |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | Heavy Duty |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight with Three Flats |
| Standards | NOT RATED |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 11.94 |
| Ship width (cm) | 9.4 |
| HS code | 8207502055 |
| Country of Origin | US |
| Model | Decimal Equivalent | Flute Length | Fractional Size | Overall Length | Shank Dia. | Size | Price | |
|---|---|---|---|---|---|---|---|---|
| 2UFU5 | 0.0625 | 7/8" | 1/16" | 1.875" | 1/16" | 1/16" | €1.86 | |
| 2UFU6 | 0.0781 | 1" | 5/64" | 2" | 5/64" | 5/64" | €1.98 | |
| 2UFU7 | 0.0938 | 1.25" | 3/32" | 2.25" | 3/32" | 3/32" | €1.96 | |
| 2UFU8 | 0.1094 | 1 5/16" | 7/64" | 2.375" | 7/64" | 7/64" | €2.06 | |
| 2UFU9 | 0.1250 | 1.437" | 1/8" | 2.5" | 1/8" | 1/8" | €2.03 | |
| 2UFV1 | 0.1406 | 1 9/16" | 9/64" | 2.625" | 9/64" | 9/64" | €2.08 | |
| 2UFV2 | 0.1562 | 1 11/16" | 5/32" | 2.75" | 5/32" | 5/32" | €2.33 |
