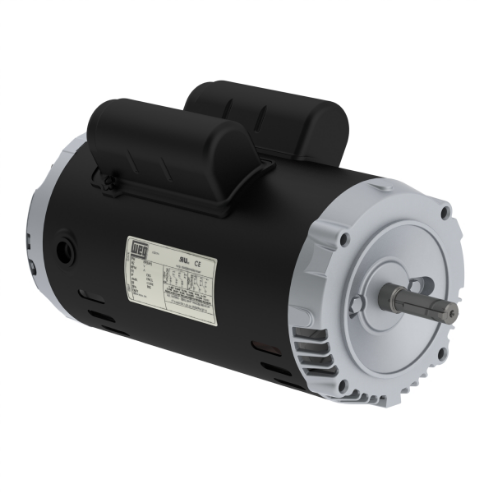

WEG 00236OS1BJPR56C-S 13772646 Electric Motor, 2Hp, 60Hz, 3600 Rpm
Get it by Tuesday, Jun 17
€442.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 260% |
| Cold Locked Rotor Time | 10 sec. |
| Composition | Steel |
| Design | L |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 80% |
| Efficiency At 50 % | 60% |
| Efficiency At 75 % | 72% |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 6 sec. |
| Hp | 2 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 170/94-85A |
| Locked Rotor Torque | 250% |
| Lrc | 7.8X(Code L) |
| Moment Of Inertia | 0.0747 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3490 RPM |
| Mounting | Footless |
| No Load Amps | 12.6/5.43-6.3A |
| No. Of Poles | 2 |
| Noise Level | 58 dBA |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protector | Automatic |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor At 1 % | 75 |
| Power Factor At 50 % | 69 |
| Power Factor At 75 % | 72 |
| Rated Current | 21.8/12.1-10.9A |
| Rated Torque | 3.01 lbs.-ft. |
| Rated Voltage | 115/208-230V AC |
| Resilient Base | Without |
| Service Factor | 1.2 |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 304 |
| Ships Factory Direct | No |
| Slip | 3.06% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V AC |
| Ship weight (kg) | 18 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 32.2 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
| Product | Model | Price | |
|---|---|---|---|
 |
.3336OS1BJPRW56C-S | €256.94 | RFQ
|
 |
.7536OS1BJPRW56J-S | €308.58 | RFQ
|
 |
00336OS1DJPR56C-S | €502.46 | RFQ
|
 |
.5036OS1BJPRW56J-S | €279.72 | |
 |
00156OS1BJPR56J-S | €398.22 | |
 |
00236OS1BJPR56J-S | €456.60 | |
|
.3336OS1BJPRW56J-S | €276.46 | RFQ
|
