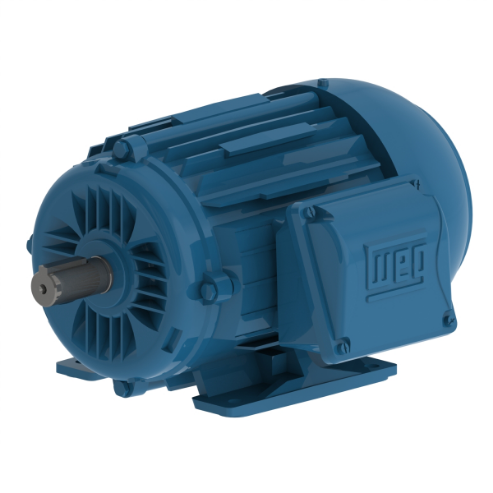

WEG 00158ET3W90L-W22 11567346 Metric Motor, Shielded 460v 60 Hz Cw / Ccw
Get it by Tuesday, Jun 17
€805.87 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Application | General Application , Wye/Delta Start Motor |
| Bearing Type | Ball |
| Cc Number | CC029A |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency Group | Premium |
| Frame | 90L |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 2.79A |
| Full Load Amps @ 50hz | 3.2/5.5/5.6A |
| Hp | 2 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1755 RPM |
| Nema Design | No Design Code |
| No. Of Speeds | 1 |
| Output Kw | 1.5 kW |
| Overall Length | 329 mm |
| Phase | 3 |
| Service Factor | 1.25 |
| Shaft Dia. | 24 mm |
| Shaft Length | 50 mm |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Warranty | 3 yrs. |
| Hp @ 50hz | 2 hp |
| Hz | 60 |
| Ins. Class | Class F |
| Length Less Shaft | 279 mm |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Thermal Protection | None |
| Nominal Efficiency | 86.5% |
| Standards | CE, CSA (LR38324), IEC AND NEMA, UL (E104590) |
| Weight | 53.4 lbs. |
| Ship weight (kg) | 23.63 |
| Ship height (cm) | 20.75 |
| Ship length (cm) | 32.9 |
| Ship width (cm) | 37.77 |
| HS code | 8501524000 |
| Country of Origin | BR |
| Model | Frame | Full Load Amps | HP | Hz | kW | Mounting | Nameplate RPM | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00218ET3W100L-W22 | 100L | 4.05 | 3 | 60 | 2.2 | Rigid Base | 1745 | 87.5% | €965.08 | |
| 00518ET3Y132S-W22 | 132S | 9.07 | 7.5 | 50/60 | 5.5 | Rigid Base | 1765 | 91.7% | €1,421.47 | |
| 00712ET3Y160M-W22 | 160M | 13.1 | 10 | 50/60 | 7.5 | Rigid Base | 1180 | 91.0% | €3,426.38 | |
| 00718ET3Y132M-W22 | 132M | 12.2 | 10 | 50/60 | 7.5 | Rigid Base | 1770 | 91.7% | €1,690.31 | |
| 01112ET3Y160L-W22 | 160L | 18.8 | 15 | 50/60 | 11 | Rigid Base | 1180 | 91.7% | €4,695.64 | |
| 01118ET3Y160M-W22 | 160M | 18.2 | 15 | 50/60 | 11 | Rigid Base | 1775 | 92.4% | €2,563.52 | |
| 01136ET3Y160M-W22 | 160M | 17.9 | 15 | 50/60 | 11 | Rigid Base | 3555 | 91.7% | €3,123.19 |
