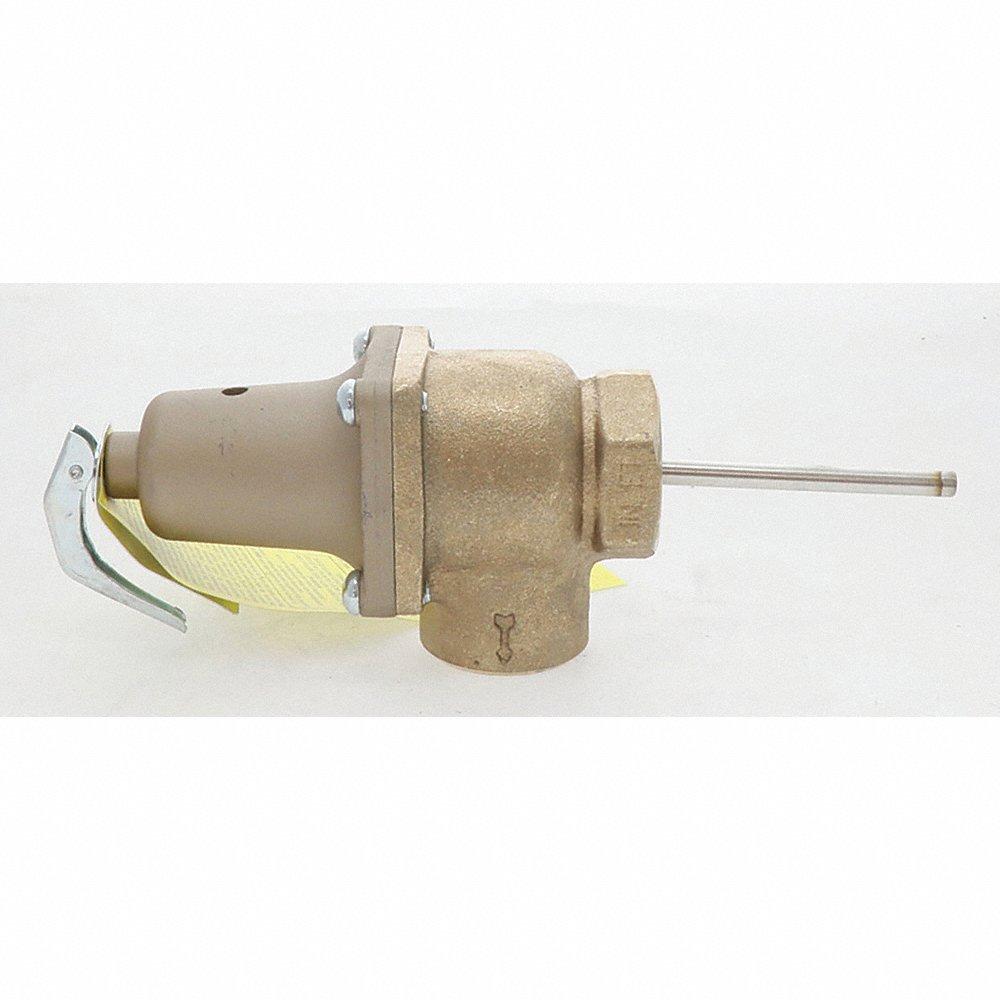

| Item | Pressure Relief Valve |
| Application | Hot Water Supply Tanks, Water Heaters |
| Asme Section Code | Section XIII |
| Body Height | 5 3/4" |
| Body Material | Copper Silicon Alloy |
| Connection Type | FNPTF x FNPTF |
| Discharge Capacity | 3085000 btuH |
| Factory Set Pressure | 150 psi |
| For Media | Water |
| Inlet Connection Size | 1" |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temperature | 210°F |
| Min. Operating Pressure | 75 psi |
| Min. Operating Temperature | -40°F |
| Outlet Connection Size | 1" |
| Preset Temperature | 210°F |
| Standards | ANSI Z21.22/CSA 4.4, ASME CODE HV, CSA, NSF CERTIFIED TO NSF/ANSI/CAN 372 |
| Thermostat Length | 3" |
| Ship height (cm) | 14.29 |
| Ship width (cm) | 6.67 |
| Country of Origin | US |
| Product | Model | Body Material | Discharge Capacity | Inlet Connection | Inlet Size | Inlet Type | Max. Temp. | Mfr. Series | Outlet Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
740-075 1 | Iron | 2649000 btuh | Female Threaded | 1" | Female Threaded | 250 Deg. F | 740 | 1-1/4" | - | RFQ
|
 |
174-Z3-T 050 | Bronze | - | - | 1" | Female Threaded | 250 Degree F | 174A | 1" | €669.28 | RFQ
|
 |
174-Z3-T 075 | Bronze | 2055000 btuh At 75 psi | Female Threaded | 1" | Female Threaded | 250 Deg. F | 174A | 1" | €669.28 | RFQ
|
 |
LFN30 5-30 1/2 | Lead Free Bronze | - | Male Threaded | 1/2" | Male Threaded | - | N30 | 1/2" | €572.24 | |
|
LFF116-23 0-30 1 1/4 | - | - | - | - | - | - | LFF116 | - | €3,442.43 | RFQ
|
 |
LF140X9 150-210 1 | - | - | - | - | - | - | - | - | - | RFQ
|
 |
LF174A-60 3/4 | - | - | - | - | - | - | - | - | €596.67 | RFQ
|
