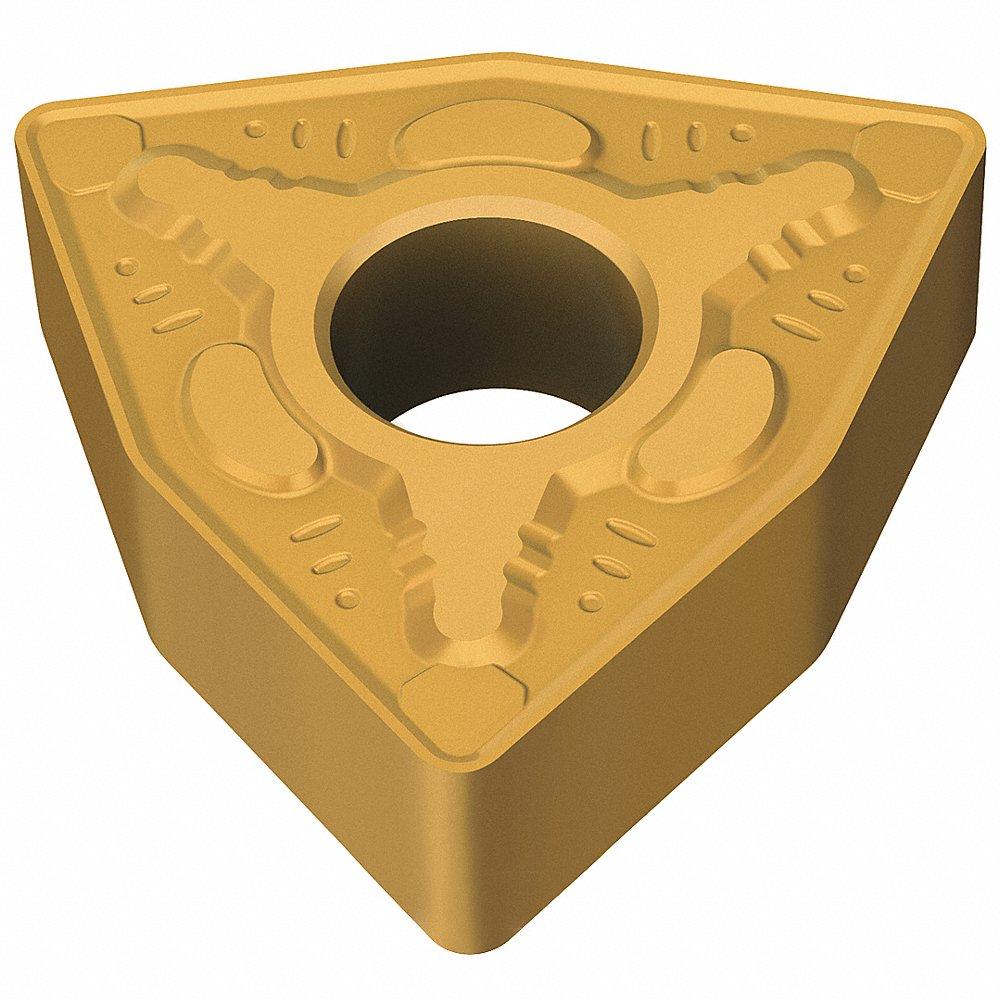

WALTER TOOLS WNMG080408-RV5 WPV10 Turning Insert, 1/2 Inch Inscribed Circle, Neutral, 4.76 mm Thick, Rv5 Chip-Breaker
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Turning Insert |
| Ansi Code | WNMG432-RV5 WPV10 |
| Chip-breaker Code | RV5 |
| Clearance Angle | 0° |
| Coating Process | Chemical vapor deposition |
| Corner Radius | 0.8 mm |
| Cutting Application | Turning |
| Cutting Depth | 1 mm to 5 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 8.7 mm |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Code | WNMG432 |
| Insert Holding Type | Straight Hole |
| Insert Style | WNMG |
| Material | Carbide |
| Number Of Cutting Edges | 6 |
| Primary Material Application | Steel |
| Rake | Negative |
| Shape | Trigon |
| System Of Measurement | Metric |
| Thickness | 4.76 mm |
| Through Hole Inside Dia. | 5.16 mm |
| Chip-breaker | Yes |
| Depth Of Cut | 1 mm to 5 mm |
| Finish - Machining | TiCN+Al2O3+TiN |
| Iso Number | WNMG080408-RV5 WPV10 |
| Manufacturer Grade | WPV10 |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Primary Material Application Iso Code | P |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
| Model | Price | |
|---|---|---|
| WCMW040204 WCB80 | €115.98 | |
| WCMW030202 WCB80 | €107.65 | |
| WCMW050304 WCB80 | €106.91 | |
| WCMW020102 WCB80 | €106.91 | |
| WCMW030204 WCB80 | €106.91 | |
| WCGT050304-X15 WTP35 | €34.79 | |
| WCGT020102-X15 WXM15 | €32.25 |
