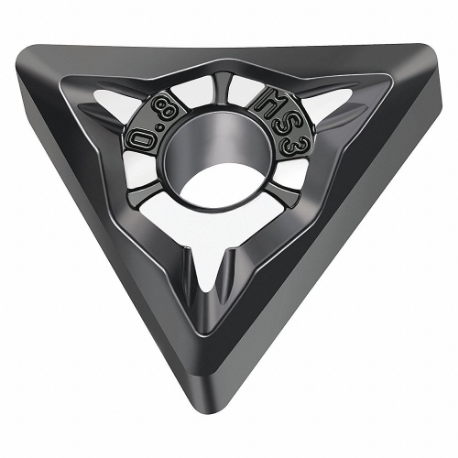

WALTER TOOLS TNMG220404-MS3 WPP20S Triangle Turning Insert, 1/2 Inch Inscribed Circle, Neutral, Ms3 Chip-Breaker
Get it by Tuesday, Jun 17
This product can only be shipped in multiples of 10
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
Item | Turning Insert |
Ansi Code | TNMG431-MS3 |
Chip-breaker Code | MS3 |
Clearance Angle | 0° |
Coating Process | Chemical vapor deposition |
Corner Radius | 0.016" |
Cutting Direction | Neutral |
Cutting Edge Length | 22 mm |
Included Angle | 60° |
Inscribed Circle | 1/2" |
Insert Code | 431 |
Material | Carbide |
Rake | Negative |
Shape | Triangle |
System Of Measurement | Imperial |
Thickness | 0.188" |
Through Hole Inside Dia. | 0.15" |
Chip-breaker | Yes |
Finish - Machining | TiCN+Al2O3+(TiCN) |
Iso Number | TNMG220404-MS3 |
Manufacturer Grade | WPP20S |
Material - Machining | Carbide |
Measurement System | Fractional Inch |
Ship weight (kg) | 0.14 |
Ship height (cm) | 2.54 |
Ship length (cm) | 2.54 |
Ship width (cm) | 2.54 |
Country of Origin | DE |
Product | Model | Item | Price | |
---|---|---|---|---|
![]() |
WCGT020104-FN2 WNN10 | Insert | €24.16 | |
![]() |
WCGT020102-FN2 WNN10 | Insert | €24.78 | |
![]() |
WNMG080412-MU5 WMP20S | Turning Insert | €26.45 | |
![]() |
WNGA080408TM-3 WBH10 | Turning Insert | €189.25 | |
![]() |
WNMG080404-MS3 WSM10S | Turning Insert | €25.97 | |
![]() |
WNMG080408-NRS WSM01 | Turning Insert | €26.60 | |
![]() |
WNMG080412-MU5 WPP10S | Turning Insert | - | RFQ
|
