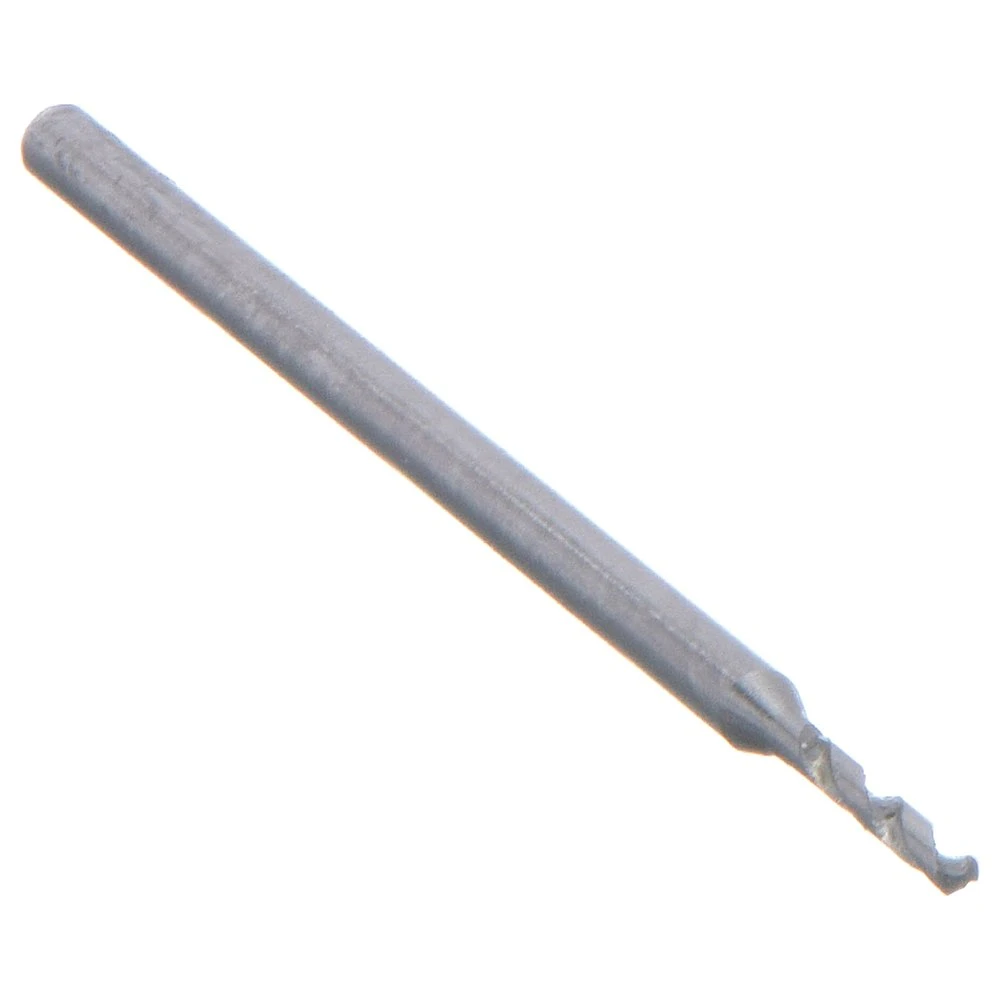

WALTER TOOLS A3162-0.88 Micro Drill Bit, 0.88 mm Drill Bit Size, 6.44 mm Flute Length, 1.50 mm Shank Dia
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Micro Drill Bit |
| Circuit Board Drill | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0346 |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Self Centering Point |
| Drill Bit Size | 0.88 mm |
| Finish | Bright, Uncoated |
| Flute Length | 6.44 mm |
| Flute Type | Spiral |
| Grade | Grade K30F |
| Material | Carbide |
| Max. Drilling Depth | 6.44 mm |
| Overall Length | 25 mm |
| Shank Dia. | 1.5 mm |
| Shank Type | Straight |
| System Of Measurement | Metric |
| Finish - Machining | Bright (Uncoated) |
| Material - Machining | Carbide |
| Material Grade - Machining | Grade K30F |
| Maximum Drilling Depth | 6.44 mm |
| Measurement System | Metric |
| Shank Type - Machining | Straight |
| Standards | NOT RATED |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
| Product | Model | Price | |
|---|---|---|---|
 |
DB130-05-00.990U0-WJ30UU | €39.02 | |
 |
A3162-0.99 | - | RFQ
|
 |
A3143-0.94 | €11.76 | |
|
A3162-0.94 | - | RFQ
|
|
DB130-05-00.940U0-WJ30UU | €40.62 | |
 |
A3153-0.94 | €20.78 | |
|
A3143-0.89 | €12.14 |
