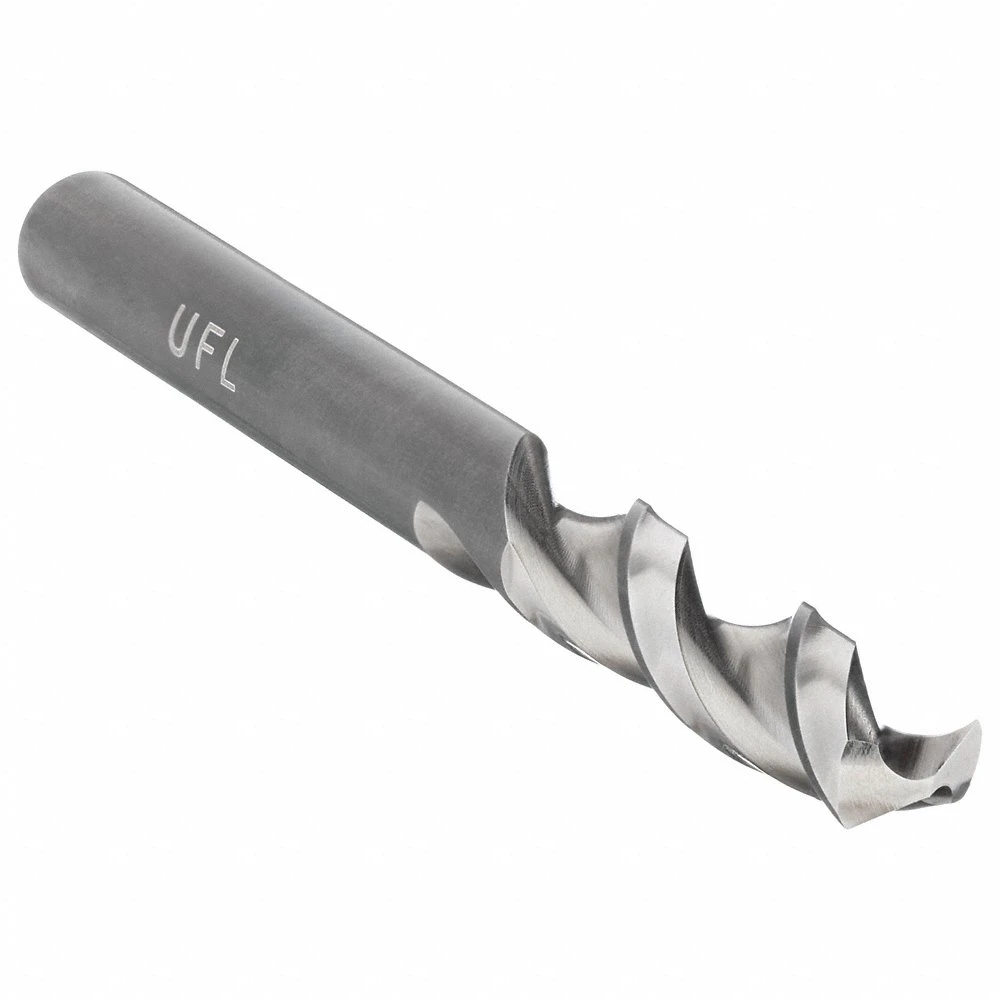

| Item | Screw Machine Drill Bit |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1693 |
| Depth X Dia. Ratio | 3xd |
| Drill Bit Point Angle | 130° |
| Drill Bit Point Type | Conical Point |
| Drill Bit Size | 4.3 mm |
| Drill Diameter Tolerance | H8 |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 1 mm |
| Finish | Bright, Uncoated |
| Flute Length | 0.938" |
| Flute Type | Parabolic |
| Grade | General Purpose |
| Material | High Speed Steel |
| Number Of Flutes | 2 |
| Overall Length | 58 mm |
| Primary Material Application | All Materials |
| Secondary Material Application | Composite |
| Shank Dia. | 4.3 mm |
| Shank Length | 34 mm |
| Shank Type | Straight |
| Sheeter Drill | No |
| System Of Measurement | Metric |
| Depth:dia. Ratio | 3xD |
| Finish - Machining | Bright (Uncoated) |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Measurement System | Metric |
| Primary Material Application Iso Code | K, M, N, P, S |
| Secondary Material Application Iso Code | O |
| Shank Diameter | 4.3 mm |
| Shank Type - Machining | Straight |
| Standards | DIN 1897 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.8 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
| Model | Price | |
|---|---|---|
| A1149XPL-NO1 | €31.47 | |
| A1148-NO1 | €14.52 | |
| A1149XPL-NO10 | €28.14 | |
| A1148-NO11 | €12.01 | |
| A1149XPL-NO11 | €27.34 | |
| A1148-NO12 | €12.01 | |
| A1149XPL-NO12 | €27.34 |
