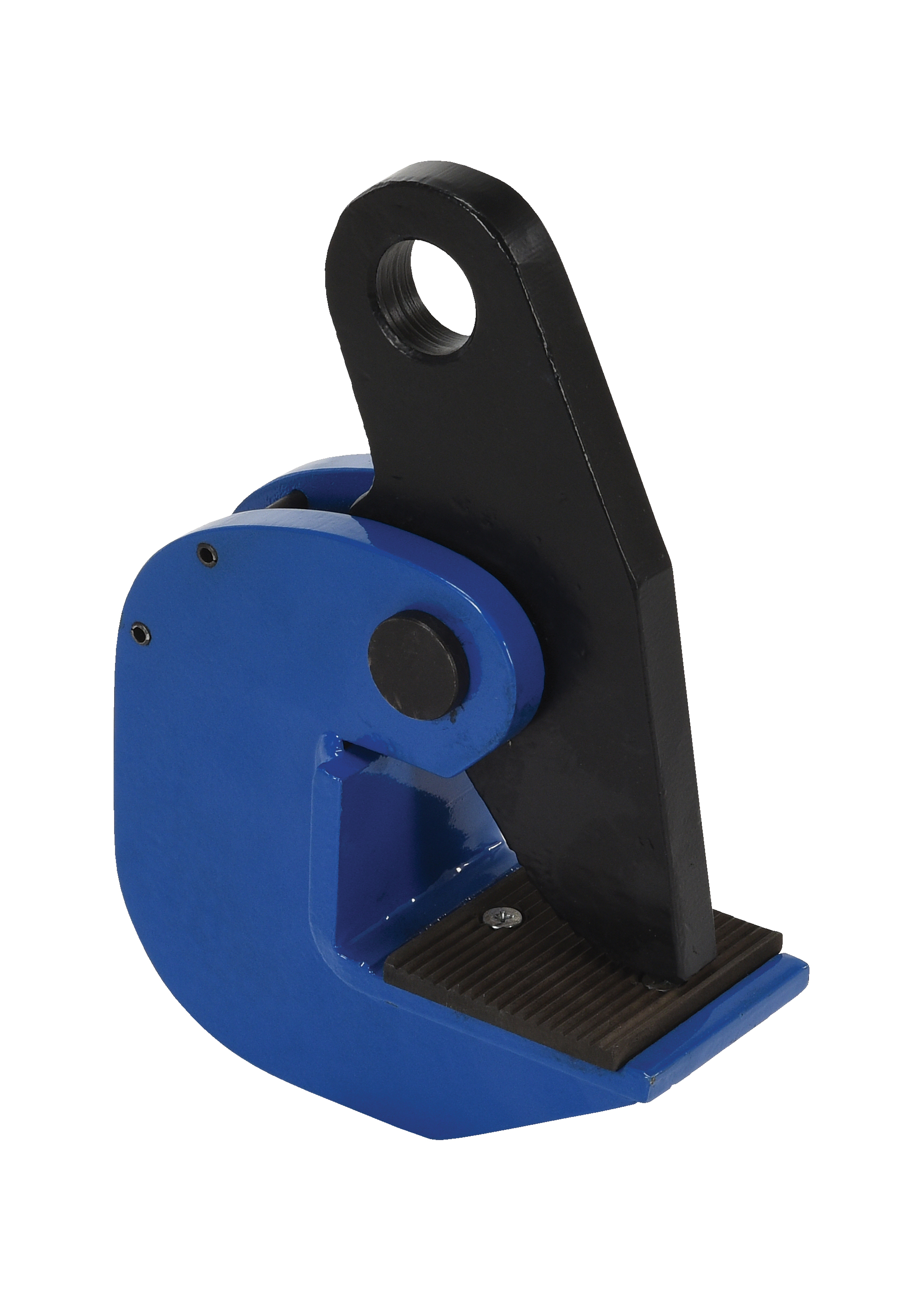

| Item | Plate Clamp |
| Bale Opening | 1.2" |
| Clamp Lock Mechanism | Automatic Locking |
| Color | Blue |
| Height | 10.25" |
| Jaw Depth | 3.375" |
| Length | 7.25" |
| Lifting Clamp Style | Horizontal |
| Lifting Clamp Type | Plate Clamp |
| Material | Steel |
| Max. Compatible Plate Thickness | 1.38" |
| Max. Jaw Opening | 1.2" |
| Measuring Units | EACH |
| Overall Depth | 7.25" |
| Overall Height | 10.25" |
| Overall Length | 7.25" |
| Overall Thickness | 3" |
| Overall Width | 3" |
| Plate Thickness | 1.38" |
| Product Datasheet | vestil-rp-hpc-80.pdf |
| Ring Dia. | 1" |
| Ring Thickness | 0.63" |
| Width | 3" |
| Working Load Limit | 4 ton. |
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 26.04 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 7.62 |
| HS code | 7326908588 |
| Country of Origin | CN |
| Product | Model | Overall Width | Bale Opening | Max. Compatible Plate Thickness | Plate Thickness | Working Load Limit | Max. Jaw Opening | Overall Depth | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HPC-100 | 7.25" | 1.2" | 1.4375" | 1.4375" | 5 ton. | 1.2" | 2.5" | 10.5" | €629.98 | |
 |
HPC-20 | 2.63" | 1 3/16" | 0.8125" | 0.8125" | 1 ton. | 1.1875" | 6.0625" | 7.94" | €231.78 | |
 |
HPC-40 | 3" | 1.2" | 1.25" | 1.25" | 2 ton. | 1.2" | 7" | 8.5" | €290.52 |
