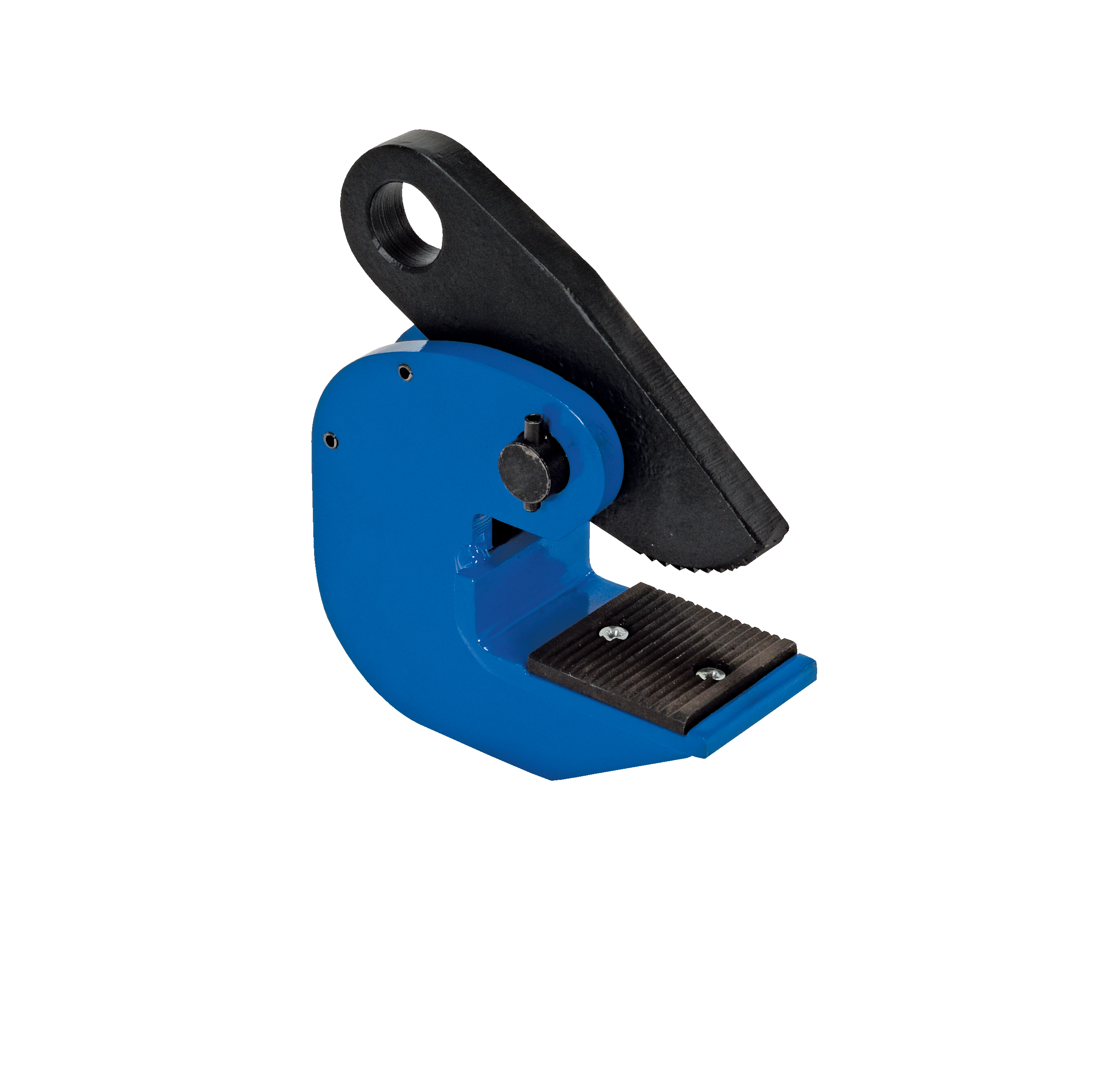

VESTIL HPC-40 Horizontal Plate Clamp, 4000 Lb. Capacity
Get it by Tuesday, Jun 17
€181.34 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Plate Clamp |
| Bale Opening | 1 1/5" |
| Clamp Lock Mechanism | Automatic Locking |
| Color | Blue |
| Height | 8 1/2" |
| Jaw Depth | 3 3/8" |
| Length | 7" |
| Lifting Clamp Style | Horizontal |
| Lifting Clamp Type | Plate Clamp |
| Material | Steel |
| Max. Compatible Plate Thickness | 1 1/4" |
| Max. Jaw Opening | 1 1/5" |
| Overall Depth | 7" |
| Overall Height | 8 1/2" |
| Overall Length | 7" |
| Overall Thickness | 3" |
| Overall Width | 3" |
| Plate Thickness | 1 1/4" |
| Ring Dia. | 1" |
| Ring Thickness | 0.63" |
| Width | 3" |
| Working Load Limit | 2 ton. |
| Lifting Operation | Horizontal |
| Operation | Horizontal Lift |
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 20.32 |
| HS code | 7326908588 |
| Country of Origin | CN |
| Product | Model | Bale Opening | Max. Compatible Plate Thickness | Max. Jaw Opening | Overall Depth | Overall Height | Overall Length | Overall Thickness | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HPC-100 | 1.2" | 1.4375" | 1.2" | 2.5" | 10.5" | 2.5" | 7.25" | 7.25" | €421.08 | |
 |
HPC-20 | 1 3/16" | 0.8125" | 1.1875" | 6.0625" | 7.94" | 6.06" | 2.63" | 2.63" | €154.74 | |
 |
HPC-80 | 1.2" | 1.38" | 1.2" | 7.25" | 10.25" | 7.25" | 3" | 3" | €237.44 |
