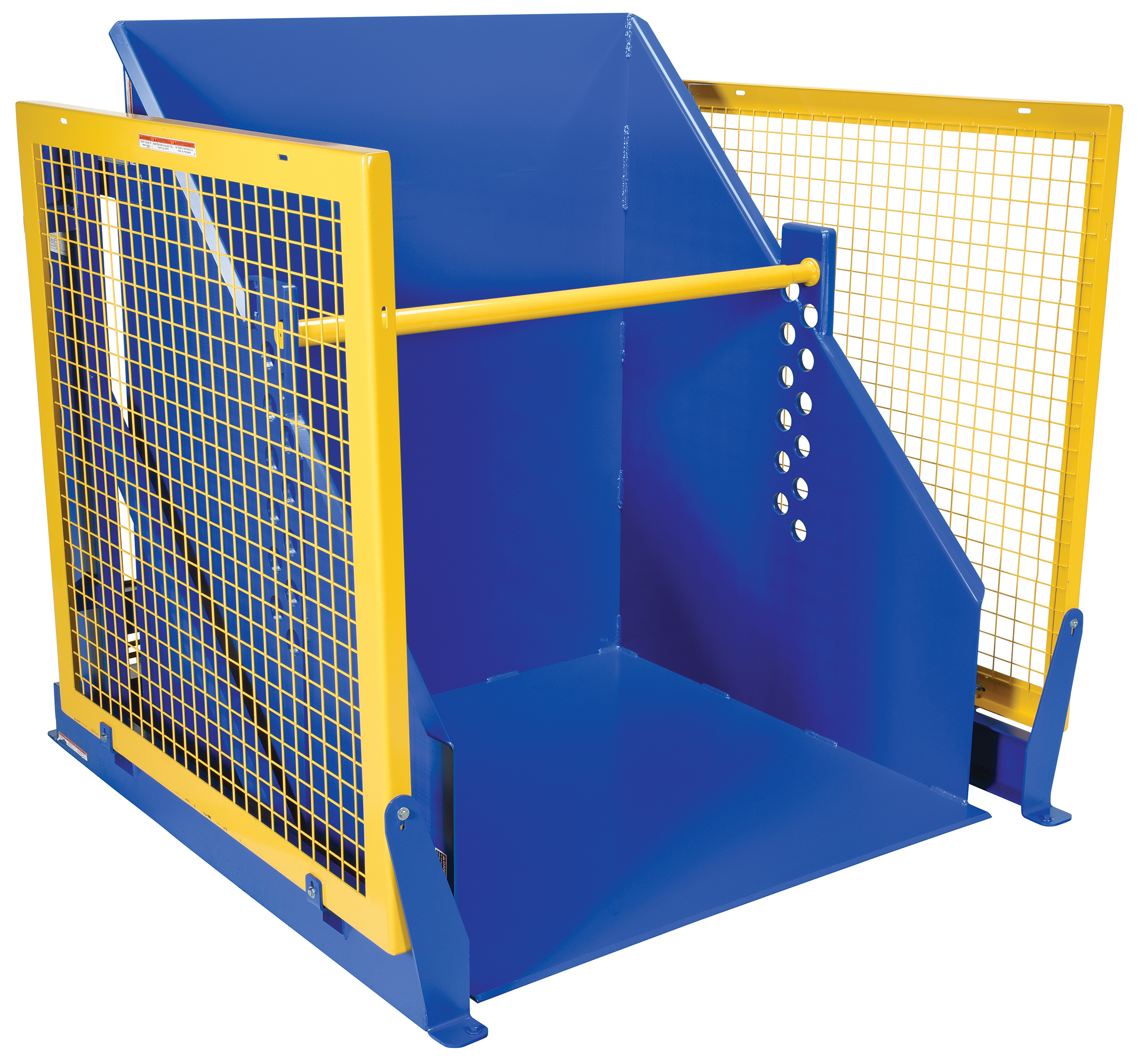

VESTIL HBD-4-48 Electric Hydraulic Box Dumper, 4000 Lb. Capacity, 48 Inch Dump Height, Blue, Steel
Due to weight and dimension restrictions, please request a shipping quote
€9,850.73 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Bin/Container Dumper |
| Chute Length | 50" |
| Chute Material | Steel |
| Chute Width | 52" |
| Control Type | Hand Control Pendant |
| Cord Length | 2 ft. |
| Dispense Height | 48" |
| Dump Height | 48" |
| For Container Size | 18" to 42" |
| Frame Material | Steel |
| Hand Held Control Length | 8 ft. |
| Height | 65" |
| Hp | 2 hp |
| Includes | Installation Hardware , Protective Mesh Side Screen |
| Length | 68 1/2" |
| Level Height | 65" |
| Load Capacity | 4000 lbs. |
| Lowered Height | 3/8" |
| Material | Steel |
| Max. Dump Height | 48" |
| Max. Duty Cycle Starts Per Hour | 15 |
| Max. Rotation Travel | 135° |
| Max. Tilt Angle | 45° |
| Maximum Hold Down Height | 10" , 18" , 2" , 42" |
| Motor Horsepower | 2 hp |
| Overall Length | 68 1/2" |
| Overall Width | 69" |
| Phase | 3 |
| Platform Length | 50" |
| Platform Material | Steel |
| Platform Width | 52" |
| Power Cord Length | 2 ft. |
| Rotated Height | 129 1/2" |
| Rotation Height | 129 1/2" |
| Standard Output | AC |
| Usable Chute Length | 50" |
| Usable Chute Width | 52" |
| Voltage | 460V |
| Width | 69" |
| Controller Cord Length | 2 ft. |
| Controls | Pendant |
| Hold Down Increments | 2" |
| Maximum Chute Reach | 10" |
| Maximum Load Capacity | 4000 lbs. |
| Maximum Rotation Angle | 135° |
| Minimum Hold Down Height | 18" |
| Operating Voltage | 460V AC |
| Ship weight (kg) | 886.5 |
| Ship height (cm) | 180.34 |
| Ship length (cm) | 175.26 |
| Ship width (cm) | 175.26 |
| HS code | 8428900290 |
| Country of Origin | US |
| Product | Model | Capacity | Dump Height | For Container Size | Height | Hp | Length | Max. Dump Height | Motor Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBD-2-36 | 2000 lbs. | 36" | 18" to 36" | 53.5" | 2 hp | 68.5" | 36" | 2 hp | €7,743.11 | RFQ
|
 |
HBD-2-48 | 2000 lbs. | 48" | 18" to 42" | 65" | 2 hp | 68.5" | 48" | 2 hp | €8,807.06 | RFQ
|
 |
HBD-2-60 | 2000 lbs. | 60" | 18" to 50" | 77" | 2 hp | 68.5" | 60" | 2 hp | €9,500.73 | RFQ
|
 |
HBD-4-36 | 4000 lbs. | 36" | 18" to 36" | 53.5" | 2 hp | 68.5" | 36" | 2 hp | €9,549.45 | RFQ
|
 |
HBD-4-60 | 4000 lbs. | 60" | 18" to 50" | 77" | 2 hp | 68.5" | 60" | 2 hp | €10,510.50 | RFQ
|
 |
HBD-6-36 | 6000 lbs. | 36" | 18" to 36" | 53.5" | 5.5 hp | 69" | 36" | 5.5 hp | €10,050.19 | RFQ
|
 |
HBD-6-48 | 6000 lbs. | 48" | 18" to 42" | 65" | 5.5 hp | 69" | 48" | 5.5 hp | €10,305.87 | RFQ
|
