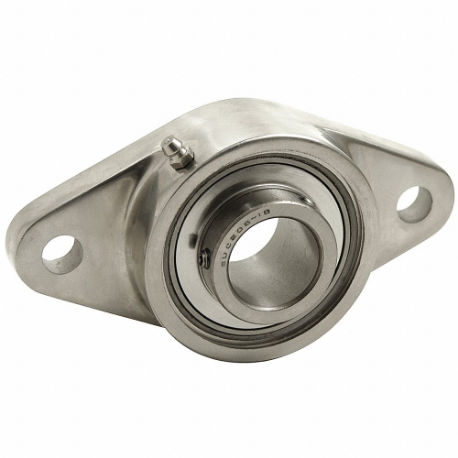

| Item | Bearing |
| Bore Dia. | 3/4" |
| Bore Type | Cylindrical |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 2877 lbf. |
| Features | Cap Ready |
| Flange Thickness | 0.438" , 7/16" |
| For Environment | Washdown |
| Grade | Grade 440C |
| Housing Material | Stainless Steel |
| Housing Material Finish | Unfinished |
| Housing Material Grade | Grade 440C |
| Housing Type | Rhombus |
| Included Bearing | Tritan UCFLSS Inner Ring |
| Included Bearing Cap | None |
| Insert Material | Stainless Steel |
| Insert Type | Radial Ball |
| Lubricant Material Grade | FDA/USDA-H1 Solid Grease |
| Lubrication Openings | One Zirc Fitting |
| Max. Temp. | 250°F |
| Min. Temp. | -40°F |
| Mount Hole Center-to-center Length | 3 35/64" , 3.547" |
| Mount Hole Size | 0.474" , 9/19" |
| Mounting Bolt Size | 3/8" |
| Number Of Mount Holes | 2 |
| Number Of Mounting Holes | 2 |
| Overall Height | 2 3/8" |
| Overall Length | 4 7/16" , 4.438" |
| Overall Width | 1 19/64" , 1.297" |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Shaft Locking Type | Set Screw , Set Screws |
| Static Radial Load Capacity | 1495 lbf. |
| System Of Measurement | Inch |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bore Diameter | 3/4" |
| Closure | Double Sealed |
| Expansion Type | Fixed |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Maximum Temperature | 250°F |
| Minimum Temperature | -40°F |
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 6.03 |
| Ship length (cm) | 11.27 |
| Ship width (cm) | 3.29 |
| Country of Origin | CN |
| Model | Price | |
|---|---|---|
| UCFLPL205-16SS | €131.43 | |
| UCFLSS205-16SS | €194.35 | |
| UCFLPL206-20SS | €170.47 |
