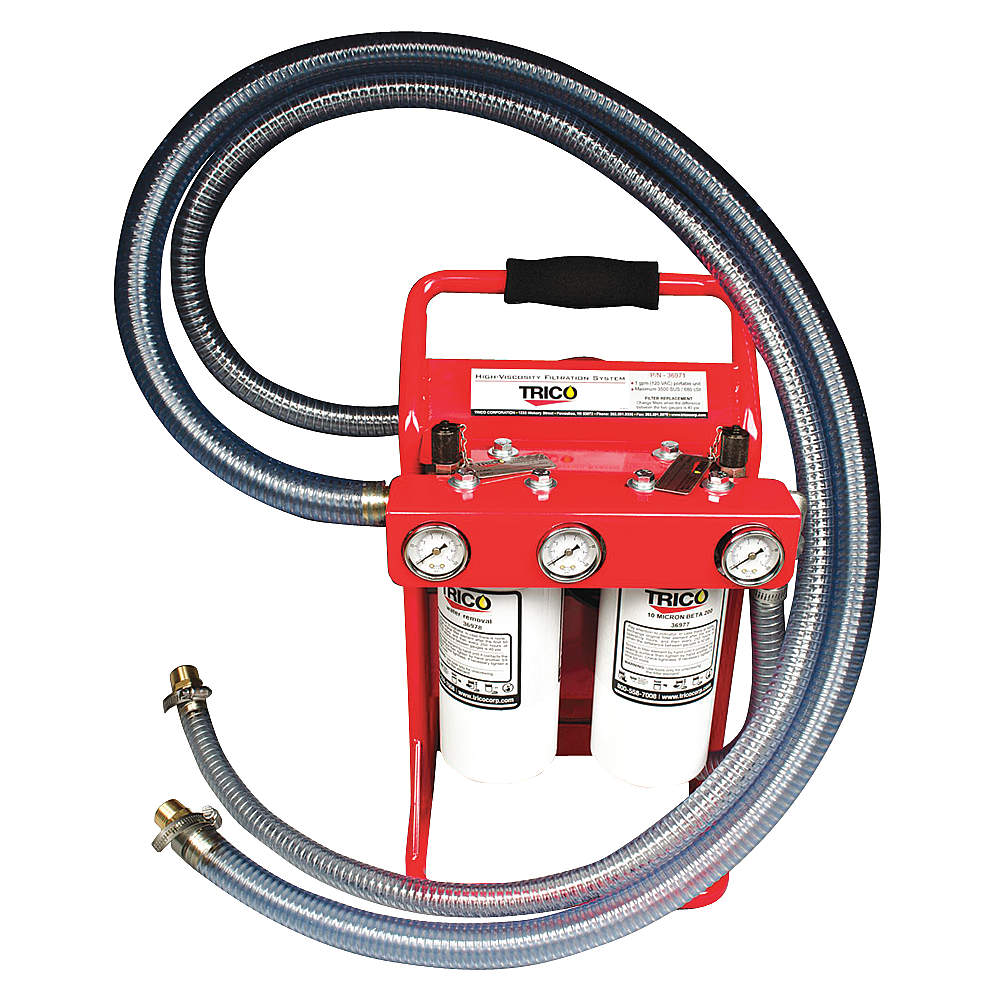

| Item | Pneumatic Hand Held Style Filter Cart |
| Differential Pressure | 85 psi |
| Height | 18" |
| Length | 15" |
| Max. Flow | 1 GPM |
| Microns | 10 µm |
| Motor Hp | 3/4 hp |
| Pump Type | Industrial Grade Gear Pump |
| Type | Hand Held |
| Width | 12" |
| Application | New Oil Filtering |
| Filter Bypass Pressure | 43 psi |
| Full Load Current | 10A |
| Includes Bypass Valve | Bypass Valve Included |
| Includes Relief Valve | Relief Valve Included |
| Maximum Flow Rate | 1 GPM |
| Maximum Fluid Viscosity | 7500 SUS |
| Maximum Operating Temperature | 150°F |
| Maximum Pressure | 85 psi |
| Motor Horsepower | 1/2 hp |
| Motor Type | Electric |
| Number Of Filters | 2 |
| Overall Depth | 13" |
| Overall Height | 17" |
| Overall Width | 27" |
| Primary Filter Media | Microglass |
| Primary Filter Rating | 10 µm |
| Primary Filter Type | Particulate |
| Pump Bypass Pressure | 85 psi |
| Relief Valve Pressure | 85 psi |
| Secondary Filter Media | Cellulose |
| Secondary Filter Rating | 10 µm |
| Secondary Filter Type | Water |
| Voltage | 115V AC |
| Ship weight (kg) | 30.6 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 68.58 |
| HS code | 8421290065 |
| Country of Origin | US |
