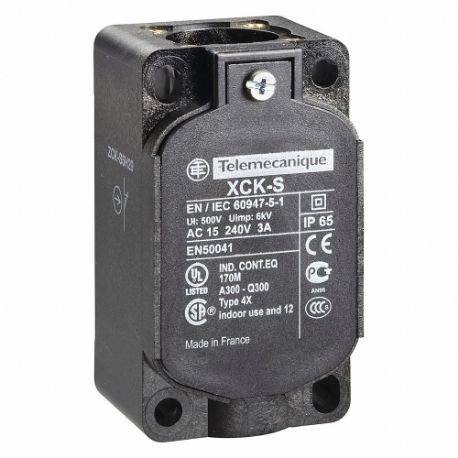

TELEMECANIQUE SENSORS ZCKS1 Limit Switch
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Limit Switch |
| Ac Contact Rating | 3A @ 240V |
| Body Configuration | Non Plug In |
| Body Style | EN50041 |
| Compatible With Grainger Part Number | 21HK25, 2EH96, 2EH97, 2EH98, 48L364, 48L365, 48L369 |
| Compatible With Manufacturer Model Number | ZCKD01, ZCKD019, ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD31, ZCKD33, ZCKD34, ZCKD39, ZCKD41, ZCKD49, ZCKD54, ZCKD55, ZCKD59, ZCKD81, ZCKD91 |
| Compatible With Series | Series XCKS |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 0.27 A @ 250 V |
| Display Qty | 1 |
| Electrical Connection | Screw Clamp Terminals |
| Indicating Light | No Indicating Light Included |
| Ip Rating | IP65 |
| Material | Plastic |
| Mounting Hole Diameter | 0.21" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Nema Enclosure Rating | NEMA 4X, NEMA 12 |
| Number Of Mounting Holes | 2 |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 4 |
| Ship length (cm) | 7.9 |
| Ship width (cm) | 4.5 |
| Country of Origin | US |
