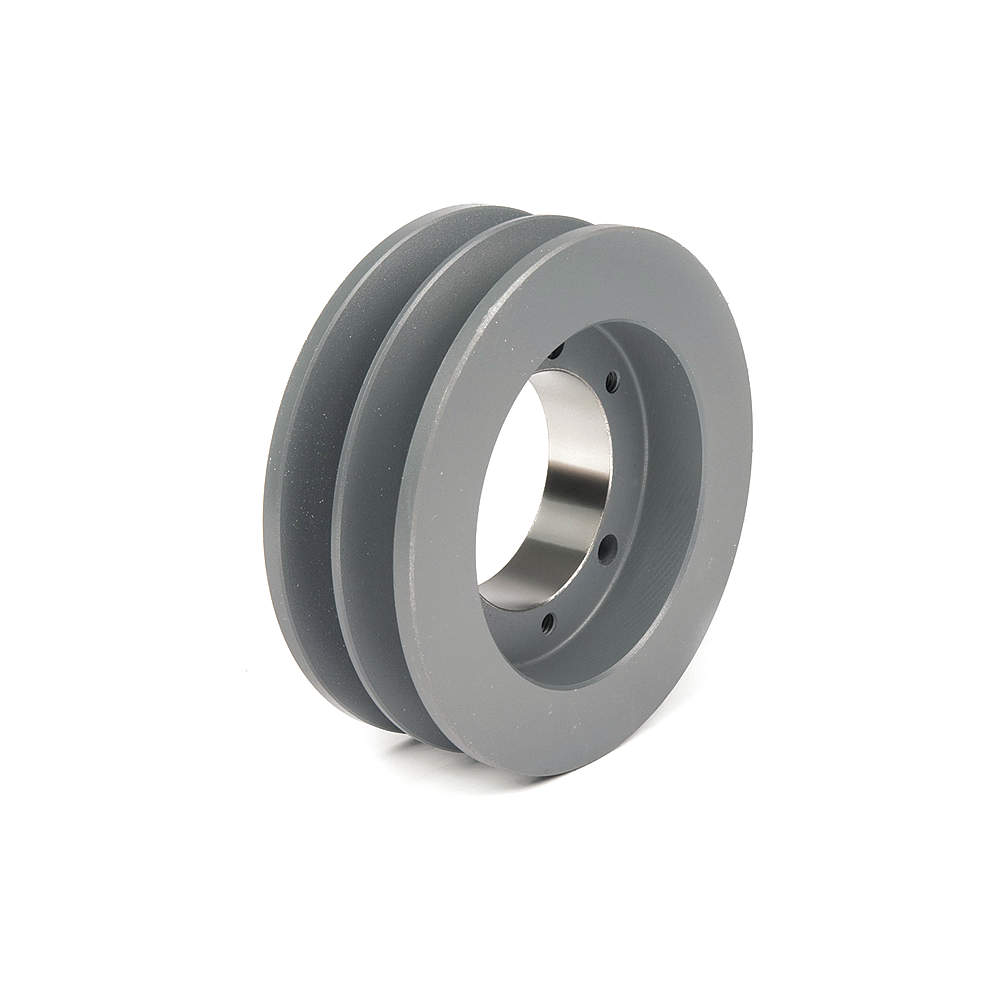

TB WOODS 3V252 Narrow V-Belt Sheave, Ductile Iron, 3V Type Belt, 2.5 inch Datum Dia.
€74.46 /unit
This product can only be shipped in multiples of 2Request a Quote
Payment
Payment
| Item | V-Belt Sheave |
| Belt Type | 3V |
| Bore Type | Quick Disconnect Bushing |
| Bushing | JA |
| Datum Dia. | 2 1/2" |
| Dimension E | 1" |
| Dimension L | 1" |
| Dimension M | 0.91" |
| Face Width | 1.53" |
| Hub Location | 11/25" |
| Inside Dia. | 1.33" |
| Material | Ductile Cast Iron |
| Max. Rpm | 15270 RPM |
| No. Of Grooves | 2 |
| Outside Dia. | 2 1/2" |
| Overall Length | 2.438" |
| Pitch Dia. | 2 1/2" |
| Product Type | Narrow |
| Weight | 1.1 lbs. |
| Ship weight (kg) | 0.5 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 6.35 |
| Product | Model | Belt Type | Bore Type | Bushing Required | Construction | Datum Diameter | Dimension E | Dimension M | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5V1252 | 5V | Quick Disconnect Bushing | SF | Arm | 12.5" | 1/4" | 0.06" | 1.69" | €424.13 | |
|
5V1602 | 5V | Quick Disconnect Bushing | SF | Arm | 16" | 1/4" | 0.06" | 1.69" | €547.10 | |
|
5V1872 | 5V | Quick Disconnect Bushing | SF | Arm | 18.7" | 1/4" | 0.06" | 1.69" | €732.08 | |
 |
5V1874 | 5V | Quick Disconnect Bushing | E | Arm | 18.7" | 0.34" | 0.09" | 3.06" | €927.34 | |
 |
5V442 | 5V | Quick Disconnect Bushing | SH | Solid | 4.4" | 0.13" | 0.31" | 1.69" | €166.10 | |
 |
5V443 | 5V | Quick Disconnect Bushing | SDS | Solid | 4.4" | 1.69" | 0.63" | 2.38" | €192.82 | |
 |
5V444 | 5V | Quick Disconnect Bushing | SD | Solid | 4.4" | 1.88" | 0.63" | 3.06" | €191.23 |
