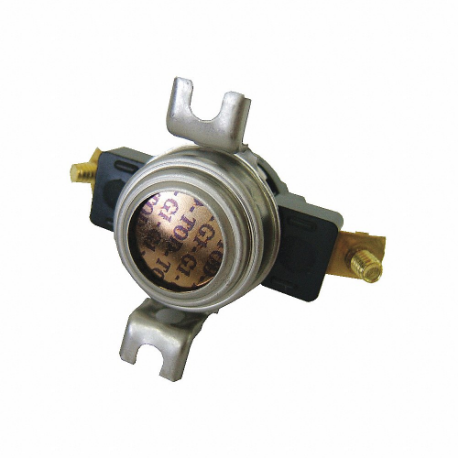

SUPCO SMRL130 Snap Disc Control, 130 Deg F Switch Opens, 120 To 240
Get it by Tuesday, Jun 17
€7.51 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Snap Disc Control |
| Application | Limit Control |
| Circuit #1 Switch Opens @ (f) | 130°F |
| Circuit No. 1-inductive 120v | 14 |
| Circuit No. 1-inductive 240v | 10 |
| Depth | 1 1/2" |
| Element Type | Insertion |
| Fan Off Temp. | 130°F |
| Height | 1" |
| Inductive Amps @ 120v | 14A |
| Inductive Amps @ 240v | 10A |
| Mounting | Surface Mount |
| Mounting Base Width | 1 5/8" , 125 VA , 2" , 25A , Quick Connect |
| Overall Depth | 1 1/2" |
| Overall Height | 1" |
| Overall Width | 2" |
| Pilot Duty Contacts (va) | 125 VA |
| Reset Type | Manual Reset |
| Resistive Amps @ 120v | 25A |
| Resistive Rating 240v | 25A |
| Resistive Rating Circuit #1 @120/240v | 25 |
| Switch Action | Open On Rise |
| Switch Closing Temperature | Not Applicable |
| Switch Opens @ (f) | 130°F |
| Switch Type | SPST |
| Temp. Range | +110°C to +130°C |
| Terminal Size | 1/4" |
| Type | Limit, Safety |
| Voltage Range | 120-240V |
| Width | 2" |
| Contact Form | DPDT |
| Input Voltage | 120/240V AC |
| Maximum Control Temperature | 130°F |
| Minimum Control Temperature | 110°F |
| Mounting Base Length | 2" |
| Pilot Contact Rating | 125 VA |
| Product Type | Temperature Limit Controller |
| Resistive Amps @ 120v Ac | 25A |
| Resistive Amps @ 240v Ac | 25A |
| Switch Opening Temperature | 130°F |
| Wire Connections | Quick Connect |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 5.08 |
| Country of Origin | MX |
