Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

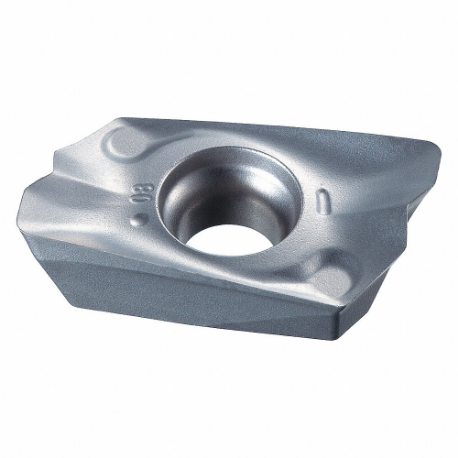

| Item | Milling Insert |
| Cast Iron (k) Compatibility | No |
| Chip-breaker | Yes |
| Chip-breaker Code | NM |
| Clearance Angle | 15° |
| Compatibility | No |
| Corner Radius | 0.8 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Medium |
| Cutting Depth | 1.6 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 15 mm |
| Features | Composed Of A Non-Coated Carbide Material With Anti-Chippingd Wear Resistant Properties |
| Finish | Bright, Uncoated |
| For Toolholder | PSE11R016SF8-2, PSE11R017SF8-2, PSE11R018SF8-2, PSE11R020SF10-3, PSE11R021SF10-3, PSE11R022SF10-3, PSE11R025SF12-4, PSE11R026SF12-3, PSE11R028SF12-4, PSE11R032SF16-5, PSE11R033SF16-3, PSE11R035SF16-5, PSE11R040SF16-6, PSE15R025SF12-2, PSE15R026SF12-2, PSE15R028SF12-2, PSE15R032SF16-3, PSE15R033SF16-3, PSE15R035SF16-3, PSE15R040SF16-4 |
| For Use With | Indexable Ballnose End Mills |
| Hardened Compatibility | No |
| Hole Type | Countersink Hole |
| Insert Application | Medium |
| Insert Holding Type | Screw |
| Insert Size | 150508 |
| Material | Carbide |
| Mfr. Series | 78PSE |
| Mounting Hole Dia. | 4.5 mm |
| Mounting Style | Screw |
| No. Of Edges | 2 |
| Non Ferrous (n) Compatibility | Yes |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Magnesium |
| Primary Material Application Iso Code | N |
| Rake | 15° |
| Shape | Parallelogram |
| Stainless Compatibility | No |
| Style | ZDKT |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 5.56 mm |
| Through Hole Inside Dia. | 4.5 mm |
| Width | 9.3 mm |
| Depth Of Cut | 1.6 mm |
| Finish - Machining | Bright (Uncoated) |
| Insert Style | ZDKT |
| Iso Number | ZDKT150508FR-NM |
| Manufacturer Grade | CK010 |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Series | 78PSE Series |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
