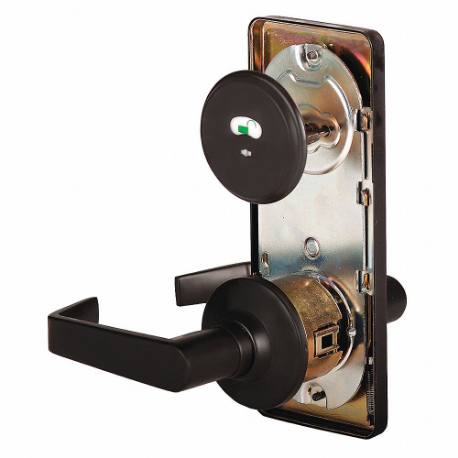

STANLEY QCI285E613S4118F Door Lever Lockset, Grade 2, Qcl Sierra, Oil Rubbed Bronze, Not Keyed
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Door Lever Lockset |
| Ada Compliant | Yes |
| Ansi Grade | Grade 2 |
| Ansi Lockset Function | Passage |
| Backset | 2 3/4" |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/8" |
| Finish | Dark Oxidized Satin Bronze, Oil Rubbed |
| Fire Rating | 3 hrs. |
| General Lockset Function | Passage Lever Locksets |
| Includes | Latch, Lever, Strike |
| Inside Locking Access | Not Lockable |
| Key Type | Not Keyed |
| Keyway Type | None |
| Knob/handle Material | Bronze |
| Location Type | Commercial, Multiple Family Residential |
| Lock Assembly Type | Cylindrical |
| Lockset Handle Type | Lever |
| Lockset Style | QCI Sierra |
| Lockset Type | Mechanical |
| Number Of Keys | 0 |
| Number Of Pins | 6 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 2 |
| Properties | Vandal Resistant |
| Standards | ANSI A117.1, ANSI/BHMA A156.12, UL AND CUL LISTED |
| Strike Plate Height | 2 3/4" |
| Strike Plate Width | 1 1/8" |
| Strike Type | Deadbolt, T-Strike |
| Ul Fire Rating | UL10C |
| Visual Indicator Location | Outside |
| Visual Indicator Message | Locked/Unlocked |
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | TW |
| Model | Backset | Grade | Handle Material | Item | Keying | Keyway Type | Required Door Thickness | Strike Dim. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QCL140M626S4478S | 2.75" | 1 | Pressure Cast Zinc | Lever | Unkeyed | - | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €327.71 | |
| QCL151M626S4478SLC | 2.75" | 1 | Pressure Cast Zinc | Lever | Keyed Different | Less Cylinder | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €391.38 | |
| QCL161M626S4478SLC | 2.75" | 1 | Pressure Cast Zinc | Lever | Keyed Different | Less Cylinder | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €291.85 | |
| QCL171M626S4478SLC | 2.75" | 1 | Pressure Cast Zinc | Lever | Keyed Different | Less Cylinder | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €373.44 | |
| QCL220M626 | 2.75" | 2 | Pressure Cast Zinc | Lever | Unkeyed | - | 1-3/8" to 2" | 1-1/4 " x 4-7/8" | €96.53 | |
| QCL230M626S4478S | 2.75" | 2 | Pressure Cast Zinc | Lever | Unkeyed | - | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €128.72 | |
| QCL240M626S4478S | 2.75" | 2 | Pressure Cast Zinc | Lever | Unkeyed | - | 1-3/8" to 2" | 1-1/4" and 4-7/8" | €148.76 |
