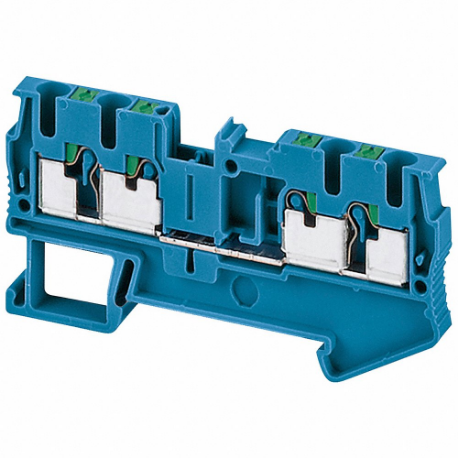

| Item | Terminal |
| Amps | 20A |
| Compatible With | Special Enclosures |
| Connection Type | Push In |
| Depth | 36.5 mm |
| For Maximum Wire Size | 12 AWG |
| For Minimum Wire Size | 24 AWG |
| Housing Color | Blue |
| Housing Material | Polyamide |
| Length | 72 mm |
| Max. Operating Temp. | 266°F |
| Max. Voltage | 600V AC |
| Min. Operating Temp. | -40°F |
| Mounting Style | Clip On |
| Number Of Connections | 4 |
| Number Of Poles | 1 |
| Number Of Tiers | 1 |
| Rohs Compliant | Yes |
| Strip Length | 10 mm |
| Type | Pass Through |
| Width | 5.2 mm |
| Circuit Protection Type | None |
| Compatible With Product Type | Special Enclosures |
| Current | 20A |
| Flammability Rating | V-0 |
| Maximum Operating Temperature | 266°F |
| Maximum Voltage | 600V AC |
| Minimum Operating Temperature | -40°F |
| Mounting Type | Clip On |
| Overall Depth | 36.5 mm |
| Overall Length | 72 mm |
| Overall Width | 5.2 mm |
| Standards | ATEX, CSA, CULUS, EAC, GL, IECEX, LR, VDE |
| Terminal Block Type | Pass-Through |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 3.65 |
| Ship length (cm) | 7.2 |
| Ship width (cm) | 0.52 |
| Country of Origin | DE |
| Product | Model | Amps | Color | Depth | Height | Item | Max. Wire Size | Min. Wire Size | Terminal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9080GE6 | 255 | Natural | 3.32" | 2.34" | Terminal Block | 250MCM | 6 AWG | Solderless Box Lug | €46.31 | |
 |
9080GMB6 | 30 | Black | 1.72" | 1.79" | Terminal Block | 10 AWG | 22 AWG | Solderless Box Lug | €3.39 | |
 |
9080GME6 | 30 | Gray | 1.72" | 1.79" | Terminal Block | 10 AWG | 22 AWG | Solderless Box Lug | €3.74 | |
 |
9080GM6 | 30 | Natural | 1.72" | 1.79" | Terminal Block | 10 AWG | 22 AWG | Solderless Box Lug | €3.85 | |
 |
9080GD6 | 170 | Natural | 2.12" | 2.71" | Terminal Block | 1/0 AWG | 12 AWG | Pass-Through | €18.23 | |
 |
9080GC6 | 85 | Natural | 1.99" | 2.13" | Terminal Block | 4 AWG | 18 AWG | Pass-Through | €8.90 | |
 |
9080GR6 | 60 | Natural | 1.72" | 1.79" | Terminal Block | 8 AWG | 22 AWG | Solderless Box Lug | €4.84 |
