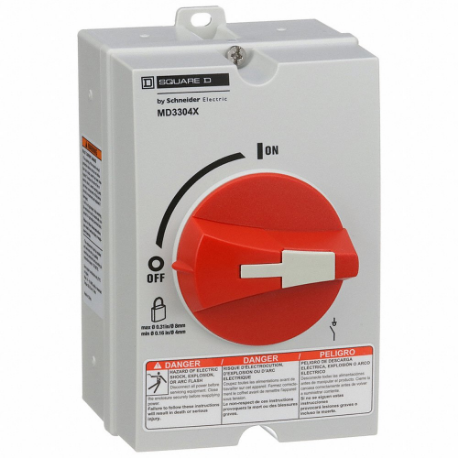

| Item | Enclosed Disconnect Switch |
| Amps | 30A |
| Contact Form | 3PST |
| Depth | 4 1/4" |
| Duty | Standard |
| Handle Color | Red |
| Height | 6 1/2" |
| Housing Material | Non Metallic |
| Hp @ 240vac | 7 1/2 hp |
| Hp @ 480vac | 20 hp |
| Hp @ 600vac | 25 hp |
| Nema Enclosure Rating | NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Protection Method | Non Fusible |
| Voltage | 600V AC |
| Width | 4" |
| Current Rating | 30A |
| Environment | Indoor, Outdoor |
| Horsepower @ 240v Ac | 71/2 hp |
| Horsepower @ 480v Ac | 20 hp |
| Horsepower @ 600v Ac | 25 hp |
| Neutral Assembly Included | Yes |
| Phase | Three |
| Standards | CSA CERTIFIED, UL 98, UL LISTED |
| Voltage Rating | 600V AC |
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 10.16 |
