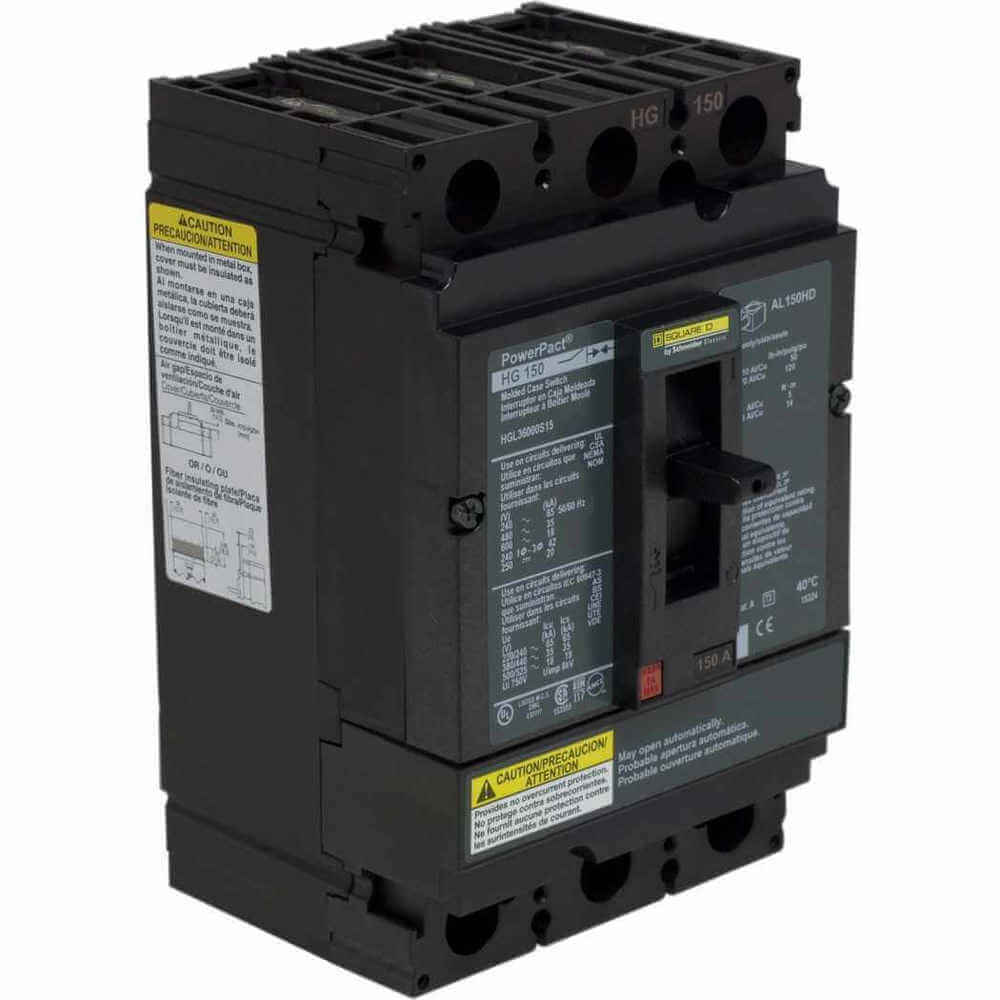

| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Amps | 150A |
| Circuit Breaker Type | Shunt Trip |
| Dc Voltage | 250V DC |
| Depth | 3 2/5" |
| Height | 6 2/5" |
| High Amp Trip Setting | 2250A |
| Low Amp Trip Setting | 1125A |
| Max. Air Rating | Not Rated |
| Min. Wire Size | 14 AWG |
| Mounting | Free Standing |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Terminal Connection Type | Lug |
| Trip Type | Thermal Magnetic |
| Width | 4.1" |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Dc Voltage Rating | 250V AC |
| Frame Size | 150A/HG |
| Instantaneous Trip | Fixed |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 3 AWG |
| Series | HG Series |
| Standards | CCC, CE, CSA, IEC, NMX, UL LISTED |
| Terminal Connection | Lug |
| Ship weight (kg) | 1.86 |
| Ship height (cm) | 14.22 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 19.05 |
| HS code | 8536200020 |
| Country of Origin | MX |
