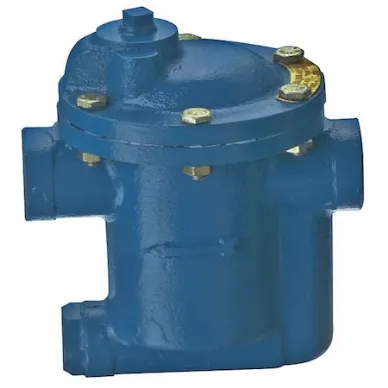

| Item | Steam Trap |
| Application | Distribution, Dirty Steam Or General Purpose |
| Body Material Grade | Cast Iron |
| Condensate Capacity | 1000 lbs./hr. |
| Disc Material | Stainless Steel |
| Downstream Pressure Range | 0 psi to 30 psi |
| End To End Length | 5.062" |
| Fnpt Size | 1" |
| Includes | Integral Strainer |
| Max. Operating Pressure | 30 psi |
| Max. Temp. | 450°F |
| Npt Inlet | 1" |
| Npt Outlet | 1" |
| Pipe Configuration | Straight |
| Type | Inverted Bucket |
| Body Material | Cast Iron |
| Configuration | In-line |
| Distance Between Inlet And Outlet Port | 5 1/16" |
| Float Material | Stainless Steel |
| Includes Strainer | Strainer Included |
| Installation Orientation | Horizontal |
| Max. Condensate Capacity | 1000 lbs./hr. |
| Max. Operating Temperature | 450°F |
| Number Of Ports | 2 |
| Port Connection Gender | Female |
| Port Connection Size | 1" |
| Port Connection Type | NPT |
| Steam Trap Type | Inverted Bucket |
| Ship weight (kg) | 3.56 |
