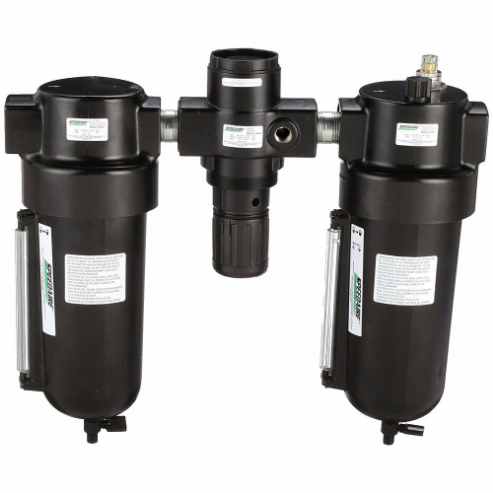

| Item | Filter/Regulator/Lubricator |
| Adjustable Pressure Range | 5 psi to 150 psi |
| Adjustment Range | 5 psi to 150 psi |
| Bowl Material | Metal With Sight Glass |
| Bowl Size | 32 oz. |
| Drain Type | Manual |
| Filter Rating | 5 µm |
| Max. Flow | 160 CFM |
| Max. Pressure | 250 psi |
| Max. Temp. | 175°F |
| Number Of Pieces | 3 |
| Overall Height | 12.45" |
| Overall Width | 14 3/4" |
| Adjustment Location | Top |
| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Reinforced Nylon |
| Air Flow Direction | Left To Right |
| Air Inlet Gender | Female |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Air Outlet Gender | Female |
| Air Outlet Size | 3/4" |
| Air Outlet Type | NPT |
| Body Material | Aluminum |
| Differential Pressure Indicator Included | Yes |
| Drain Included | Yes |
| Drain Part Compatbility | 114X35 |
| Duty Rating | Heavy Duty |
| Filter Bowl Capacity | 32 oz. |
| Filter Bowl Guard Included | Yes |
| Filter Bowl Guard Material | Aluminum |
| Filter Bowl Material | Metal With Sight Glass |
| Filter Element Material | Bronze |
| Filter Type | Particulate |
| For Fluid Type | Compressed Air |
| For Substance Type | Air |
| Lubricator Bowl Capacity | 32 oz. |
| Lubricator Bowl Guard Included | Yes |
| Lubricator Bowl Guard Material | Aluminum |
| Lubricator Bowl Material | Aluminum |
| Lubricator Type | Mist |
| Maximum Flow Rate | 160 CFM |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Temperature | 175°F |
| Minimum Operating Pressure | 0.05 MPa |
| Minimum Operating Temperature | 5°C |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Oil Capacity | 750 ct |
| Pressure Control Type | Relieving |
| Pressure Gauge Included | Yes |
| Pressure Gauge Port Gender | Female |
| Pressure Gauge Port Size | 1/4" |
| Pressure Gauge Port Type | NPT |
| Recommended Lubricant | ISO VG 32 |
| Seal Material | Rubber |
| Series | Heavy Duty |
| Sight Dome Included | Yes |
| Sight Gauge Included | Yes |
| Weight | 5 Kg |
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 40.64 |
| HS code | 8481100040 |
| Country of Origin | CN |
| Product | Model | Adjustment Range | Bowl Material | Bowl Size | Max. Flow | Max. Pressure | Max. Temp. | Number Of Pieces | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4ZM04 | 5 to 125 psi | Polycarbonate | 1.0 oz. | 10 cfm | 150 psi | 125 Degrees F | 2 | 6.54" | €120.75 | |
 |
7D683 | 5 to 150 psi | Polycarbonate with Guard | 2.2 oz. | 51 cfm | 150 psi | 125 Degrees F | 2 | 8.72" | €171.49 | |
 |
7D684 | 5 to 150 psi | Metal with Sight Glass | 2.2 oz. | 51 cfm | 250 psi | 150 Degrees F | 2 | 8.72" | €171.63 | |
|
7D685 | 5 to 150 psi | Polycarbonate with Guard | 2.2 oz. | 51 cfm | 150 psi | 125 Degrees F | 2 | 8.72" | €172.72 | |
|
7D686 | 5 to 150 psi | Metal with Sight Glass | 2.2 oz. | 51 cfm | 250 psi | 150 Degrees F | 2 | 8.72" | €167.69 | |
 |
7D687 | 5 to 150 psi | Polycarbonate with Guard | 2.2 oz. | 51 cfm | 150 psi | 125 Degrees F | 2 | 8.72" | €171.12 | |
 |
7D688 | 5 to 150 psi | Metal with Sight Glass | 2.2 oz. | 51 cfm | 250 psi | 150 Degrees F | 2 | 8.72" | €176.52 |
