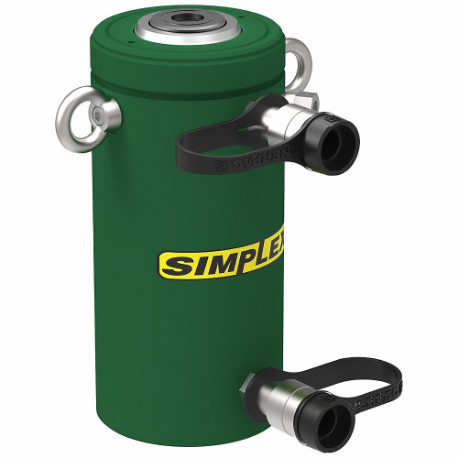

SIMPLEX RCR506 Double-Acting, High Tonnage, Hydraulic Return, Double Acting, 55 Ton Nominal Capacity
Get it by Friday, Jun 13
€3,507.21 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Ram |
| Bore Dia. | 3.74" |
| Cylinder Type | High Tonnage Hydraulic |
| Effective Push Area | 10.99 sq. in. |
| Extended Height | 17.95" |
| Max. Pressure | 10150 psi |
| Nominal Capacity | 55 ton. |
| Nominal Stroke Length | 5 7/8" |
| Oil Capacity Push | 64.88 cu. in. |
| Outside Dia. | 4 23/25" |
| Plunger Dia. | 2.95" |
| Retracted Height | 12.05" |
| Single Acting/double Acting | Double Acting |
| Stroke Length | 5.906" |
| Weight | 58 lbs. |
| Ship weight (kg) | 25.74 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | ES |
