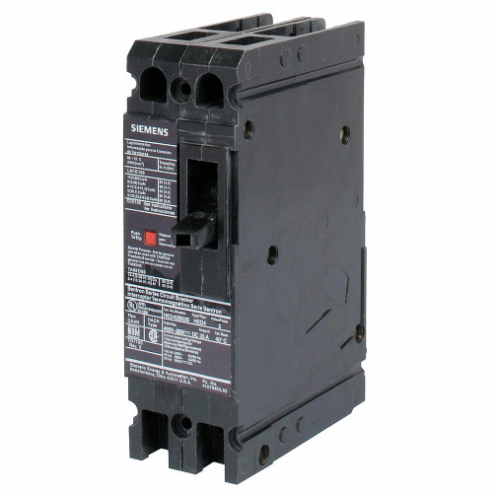

SIEMENS HED42B110 Bolt On Circuit Breaker Hed 110 Amp 480vac 2p 65kaic@277v
In Stock : 2 UnitsGet it by Monday, Jun 16
€1,025.48 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Bolt On Circuit Breaker |
| Aic Rating | 65 kAIC @ 277V |
| Amps | 110A |
| Frame Type | HED |
| Number Of Poles | 2 |
| Voltage | 480V |
| Voltage Type | AC |
| Ac Voltage Rating | 480V AC |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Lug In Panelboard |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | 250V AC |
| Depth | 4" |
| For Use With | SB Switchboards, Sentron Panelboards |
| Frame Size | 125A/ED |
| Height | 6.34" |
| High Amp Trip Setting | 110A |
| Instantaneous Trip | Fixed |
| Low Amp Trip Setting | 110A |
| Max. Air Rating | 42 kA at 480V AC |
| Max. Wire Size | 2 AWG (Al), 3 AWG (Cu) |
| Min. Wire Size | 1/0 AWG (Al), 3 AWG (Cu) |
| Phase | Single |
| Phase Connection | ABC |
| Series | HED4 Series |
| Standards | HACR RATED, UL LISTED |
| Terminal Connection | Load Side Lug |
| Trip Type | Thermal Magnetic |
| Width | 2" |
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 16.1 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 5.08 |
| HS code | 8536200020 |
| Country of Origin | US |
| Product | Model | Aic Rating | Amps | Number Of Poles | Voltage | Price | |
|---|---|---|---|---|---|---|---|
 |
HED41B045 | 65kAIC@277v | 45A | 1 | 277V | €445.57 | |
 |
HED41B050 | 65kAIC@277v | 50A | 1 | 277V | €426.10 | |
 |
HED41B060 | 65kAIC@277v | 60A | 1 | 277V | €426.10 | |
|
HED41B100 | 65kAIC@277v | 100A | 1 | 277V | €535.08 | |
 |
HED42B015 | 65kAIC@277v | 15A | 2 | 480V | - | RFQ
|
|
HED42B100 | 65kAIC@277v | 100A | 2 | 480V | €4,518.47 | |
|
HED42B125 | 65kAIC@277v | 125A | 2 | 480V | €1,305.55 |
