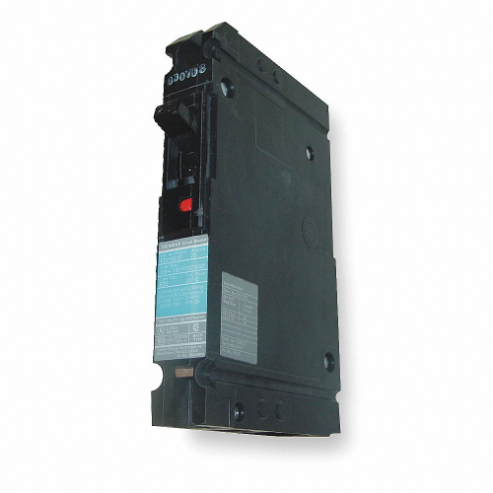

SIEMENS HED41B100 Bolt On Circuit Breaker Hed 100 Amp 277vac 1p 65kaic@277v
In Stock : 6 UnitsGet it by Friday, Jun 13
€458.64 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Bolt On Circuit Breaker |
| Aic Rating | 65 kAIC @ 277V |
| Amps | 100A |
| Frame Type | HED |
| Number Of Poles | 1 |
| Voltage | 277V |
| Voltage Type | AC |
| Ac Voltage Rating | 277V AC |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Lug In Panelboard |
| Circuit Breaker Type | High Interrupting Capacity |
| Dc Voltage Rating | 125V DC |
| Depth | 3.92" |
| For Use With | SB Switchboards, Sentron Panelboards |
| Frame Size | 125A/ED |
| Height | 6.35" |
| High Amp Trip Setting | 100A |
| Instantaneous Trip | Fixed |
| Low Amp Trip Setting | 100A |
| Max. Air Rating | 25 kA at 277V AC |
| Max. Wire Size | 1/0 AWG |
| Min. Wire Size | 6 AWG |
| Phase | Single |
| Phase Connection | Any |
| Series | HED4 Series |
| Standards | IEC 60947-2, UL 489 |
| Terminal Connection | Load Side Lug |
| Trip Type | Thermal Magnetic |
| Width | 1" |
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 16.13 |
| Ship length (cm) | 9.96 |
| Ship width (cm) | 2.54 |
| HS code | 8536200020 |
| Country of Origin | MX |
| Product | Model | Aic Rating | Amps | Number Of Poles | Voltage | Price | |
|---|---|---|---|---|---|---|---|
 |
HED41B045 | 65kAIC@277v | 45A | 1 | 277V | €445.57 | |
 |
HED41B050 | 65kAIC@277v | 50A | 1 | 277V | €426.10 | |
|
HED41B060 | 65kAIC@277v | 60A | 1 | 277V | €426.10 | |
 |
HED42B015 | 65kAIC@277v | 15A | 2 | 480V | - | RFQ
|
|
HED42B100 | 65kAIC@277v | 100A | 2 | 480V | €4,518.47 | |
 |
HED42B110 | 65kAIC@277v | 110A | 2 | 480V | €1,196.40 | |
|
HED42B125 | 65kAIC@277v | 125A | 2 | 480V | €1,305.55 |
