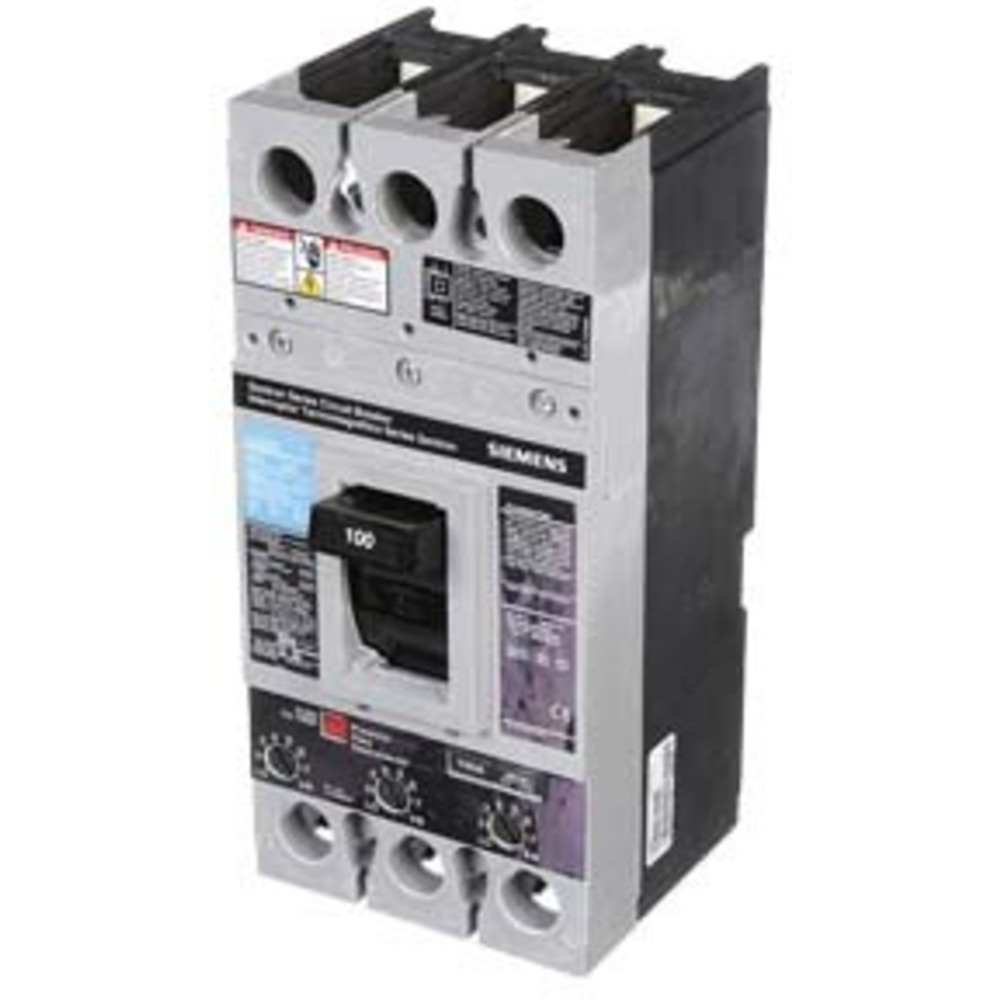

| Item | Bolt On Circuit Breaker |
| Aic Rating | 35 kAIC @ 480V |
| Amps | 100A |
| Frame Type | FXD |
| Number Of Poles | 3 |
| Voltage | 600V |
| Voltage Type | AC |
| Ac Voltage Rating | 600V AC |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | 500V DC |
| Depth | 4" |
| For Use With | SB Switchboards Without Lugs, Sentron Panelboards |
| Frame Size | 250A/FD |
| Height | 9 1/2" |
| High Amp Trip Setting | 100A |
| Instantaneous Trip | Fixed |
| Low Amp Trip Setting | 100A |
| Max. Air Rating | 22 kA at 600V AC |
| Phase | Three |
| Phase Connection | ABC |
| Series | FXD6-A Series |
| Standards | UL LISTED |
| Terminal Connection | Lug |
| Trip Type | Thermal Magnetic |
| Width | 4.5" |
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 11.43 |
| HS code | 8536200020 |
| Country of Origin | MX |
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.
In Stock : 46 Units
