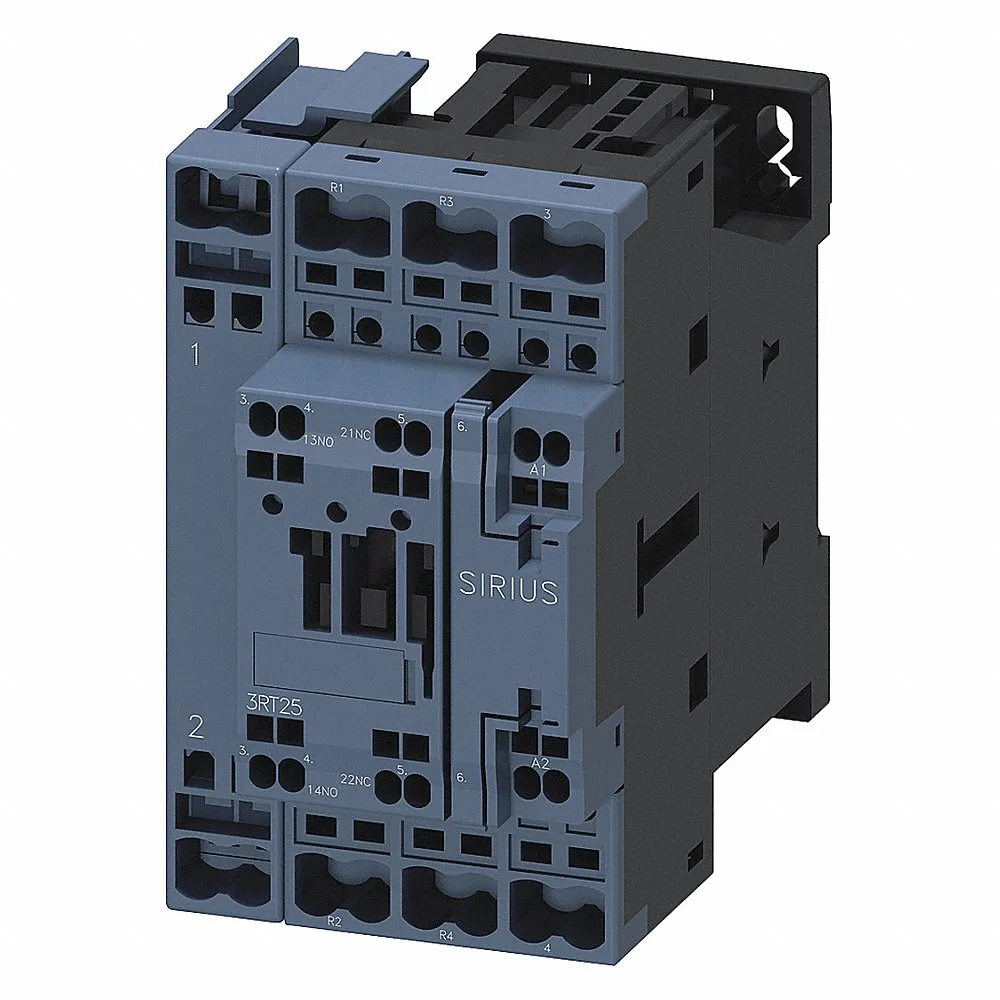

| Item | Contactor |
| Aux. Contact Configuration | 1NO/1NC |
| Coil Volts | 230V AC |
| Depth | 4.41" , 97 mm |
| Embedded Surge Suppressor | No |
| Frequency | 50 Hz |
| Full Load Amps-inductive | 25A |
| Full Load Amps-resistive | 40A |
| Height | 102 mm , 5 4/25" |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 240v | 3 hp |
| Includes Auxiliary Contacts | Yes |
| Mounting Hole Dia. | 0.19" |
| Mounting Hole Distance | 2.95" |
| Mounting Hole Distance - Width | 1.38" |
| Mounting Position | Vertical |
| Number Of Auxillary Contacts | 4 |
| Number Of Normally Closed Main Contacts | 2 |
| Number Of Normally Open Main Contacts | 2 |
| Number Of Poles | 4 |
| Terminal Connection Type | Screw Terminals |
| Width | 3" , 61 mm |
| Auxiliary Contacts Included | 2NO/2NC |
| Coil Voltage | 230V AC |
| Contactor Style | IEC |
| Frame Size | S0 |
| Full Load Current - Inductive | 25A |
| Full Load Current - Resistive | 40A |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Single Phase - 240v Ac | 3 hp |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 2NO/2NC |
| Maximum Operating Temperature | 140°F |
| Mechanical Operating Durability | 30000000 |
| Minimum Operating Temperature | -13°F |
| Mounting Postion | Vertical |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 240V AC |
| Overall Depth | 4.41" |
| Overall Height | 5.16" |
| Overall Width | 3" |
| Reversing Capability | Non-Reversing |
| Series | SIRIUS 3RT25 |
| Standards | REACH ART 33, WEEE (2012/19/EU) |
| Wire Termination Type | Screw |
| Ship weight (kg) | 0.53 |
| Ship height (cm) | 13.11 |
| Ship length (cm) | 11.2 |
| Ship width (cm) | 7.62 |
| Country of Origin | DE |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
3RT20182AF02 | Contactor | €172.21 | |
 |
3RT20181AF01 | Contactor | €170.78 | |
 |
3RT20182AF01 | Contactor | €172.21 | |
 |
3RT20271AG20 | Contactor | €328.00 | |
|
3RT20271AF00 | Contactor | €339.19 | |
|
3RT20181AK610UA0 | Contactor | €259.01 | |
 |
3RT20272AK60 | Contactor | €350.82 |
