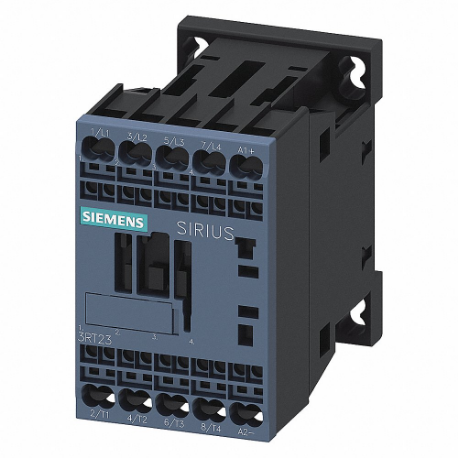

| Item | Contactor |
| Aux. Contact Configuration | 2NO/2NC |
| Coil Volts | 24V DC |
| Depth | 1.7" , 73 mm |
| Embedded Surge Suppressor | No |
| Full Load Amps-inductive | 18A , 9A |
| Full Load Amps-resistive | 18A |
| Height | 2.85" , 70 mm |
| Includes Auxiliary Contacts | Yes |
| Mounting Position | Vertical |
| Number Of Auxillary Contacts | 4 |
| Number Of Normally Closed Main Contacts | 0 |
| Number Of Normally Open Main Contacts | 4 |
| Number Of Poles | 4 |
| Terminal Connection Type | Spring Loaded Terminals |
| Width | 3.15" , 45 mm |
| Auxiliary Contacts Included | 2NO/2NC |
| Coil Voltage | 24V DC |
| Contactor Style | IEC |
| Frame Size | S00 |
| Full Load Current - Inductive | 9A |
| Full Load Current - Resistive | 18A |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 4NO |
| Maximum Operating Temperature | 140°F |
| Mechanical Operating Durability | 30000000 |
| Minimum Operating Temperature | -13°F |
| Mounting Postion | Vertical |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Overall Depth | 1.7" |
| Overall Height | 2.85" |
| Overall Width | 3.15" |
| Reversing Capability | Non-Reversing |
| Series | SIRIUS 3RT23 |
| Standards | REACH ART 33, WEEE (2012/19/EU) |
| Wire Termination Type | Spring Loaded |
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 7.24 |
| Ship length (cm) | 4.32 |
| Ship width (cm) | 8 |
| Country of Origin | DE |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
3RT20182AF02 | Contactor | €172.21 | |
 |
3RT20181AF01 | Contactor | €170.78 | |
 |
3RT20182AF01 | Contactor | €172.21 | |
 |
3RT20271AG20 | Contactor | €328.00 | |
|
3RT20271AF00 | Contactor | €339.19 | |
|
3RT20181AK610UA0 | Contactor | €259.01 | |
 |
3RT20272AK60 | Contactor | €350.82 |
