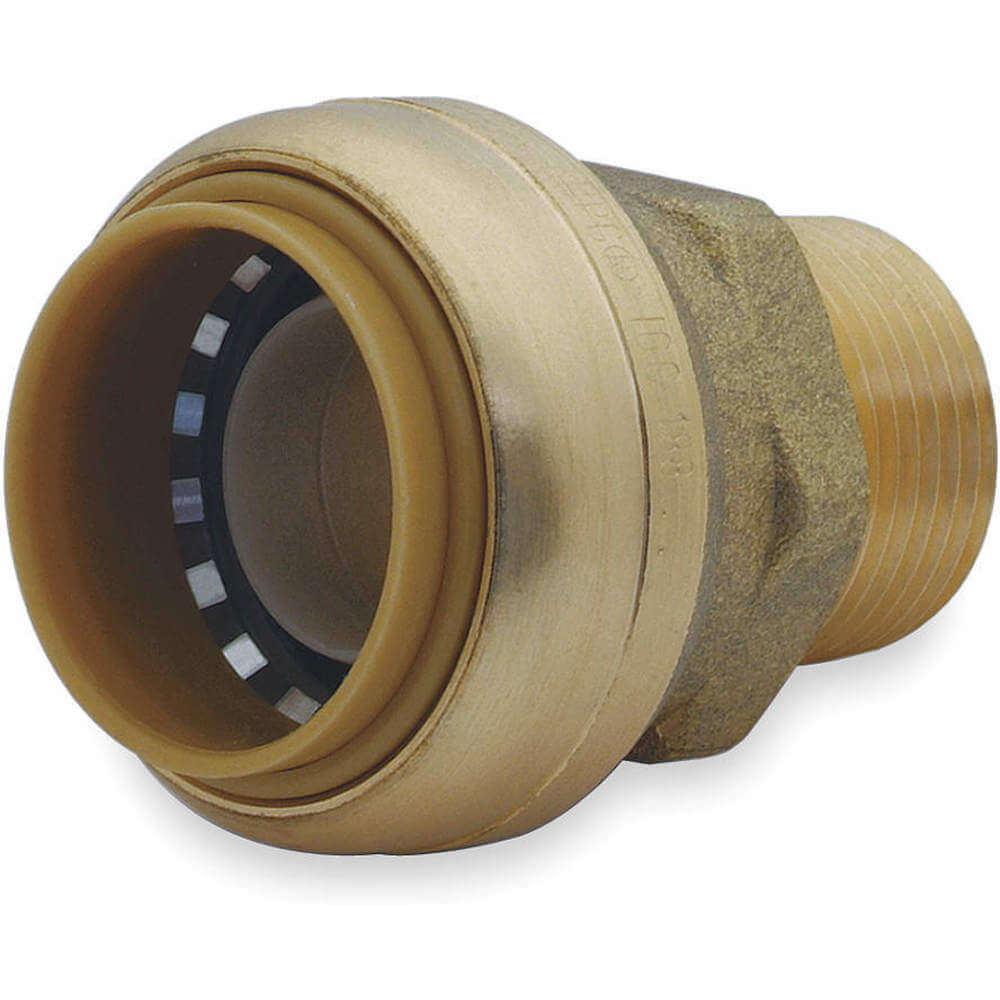

| Item | Male Reducing Adapter |
| Basic Material | Metal |
| Body Material | DZR Brass |
| Connection Type | Tube x MNPT |
| Gasket Material | EPDM |
| Max. Pressure | 200 psi |
| Temp. Range | 0°F to +200°F |
| Tube Size | 0.75" x 1" |
| Application | Potable Water |
| Color | Brass |
| Compatible Tube Material | Copper, CPVC, HDPE, PEX, Polyethylene |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 1" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 3/4" |
| Fitting Thread Size | 3/4" |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 200 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 0°F |
| Overall Length | 2 1/8" |
| Release Ring Material | EPDM |
| Resistance Properties | Corrosion Resistant |
| Specific Fitting Shape | Straight Adapter |
| Standards | ASSE 1061/NSF 92, CPUC LISTED, IAPMO, IGC 188, IPC, NSF/ANSI 61, UPC |
| System Of Measurement | Imperial |
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 9.65 |
| Ship width (cm) | 18.54 |
| HS code | 7412200045 |
| Country of Origin | AU |
| Product | Model | Connection Type | Gasket Material | Hex Size | Item | Temp. Range | Tube Size | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
U134LF | Tube x MNPT | EPDM | - | Male Adapter | 0 Degrees to 200 Degrees F | 3/4" | - | RFQ
|
 |
U140LF | Tube x MNPT | EPDM | - | Male Adapter | 0 Degrees to 200 Degrees F | 1" | €29.12 | |
 |
U138LF | Tube x MNPT | EPDM | 1/2" | Male Reducing Adapter | 0 Degrees to 200 Degrees F | 3/4" x 1/2" | - | RFQ
|
 |
U110LF | Tube x MNPT | EPDM | 1/2" | Male Reducing Adapter | 0 Degrees to 200 Degrees F | 1/4" x 1/2" | €23.13 | |
 |
UXL115450M | - | - | - | Male Connector | - | - | €127.21 | |
 |
UXL113532M | Push-Fit | Polysulfone | 1.25" | Male Connector | 20 to 200 Deg. F | 1 1/4" | €56.09 |
