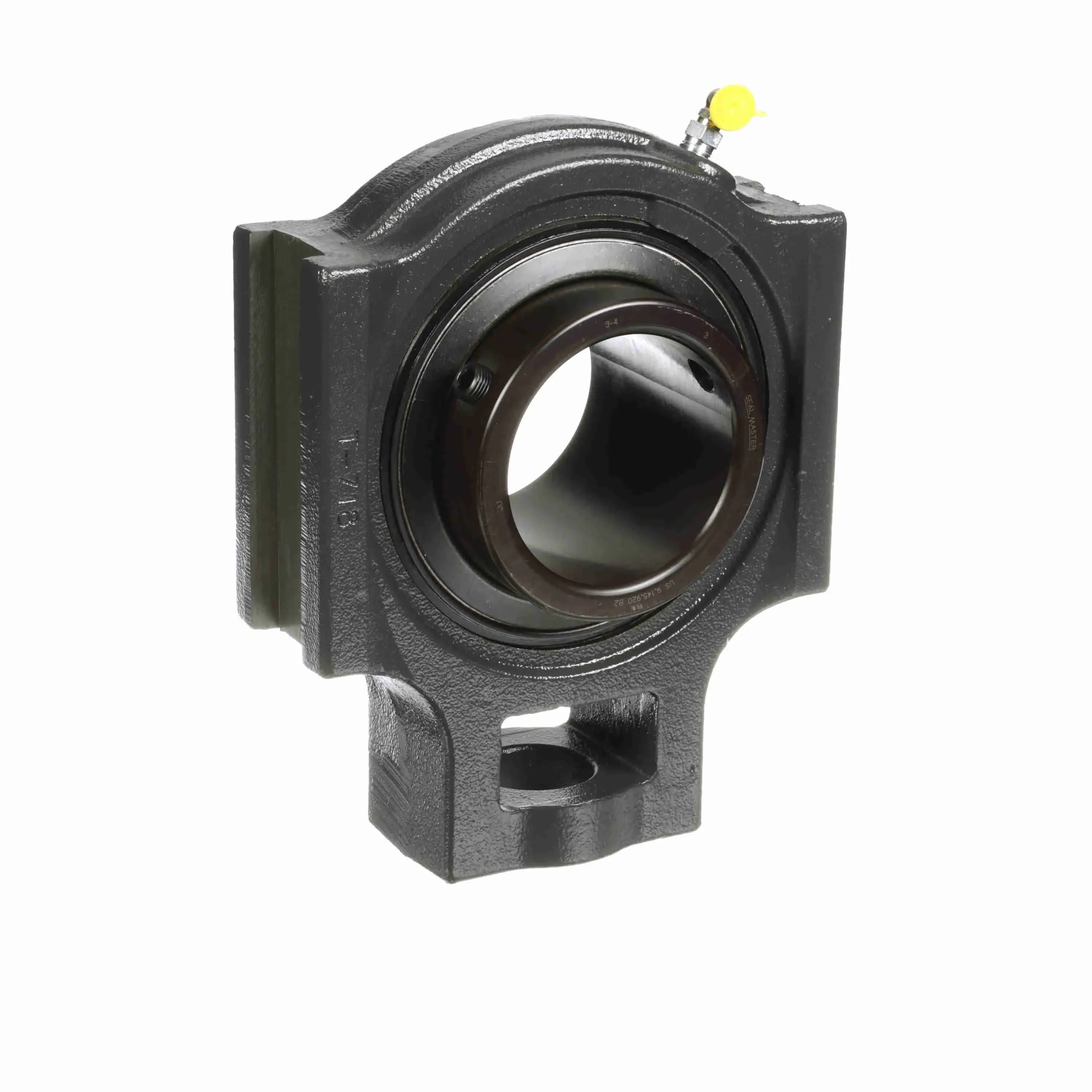

SEALMASTER MST-64 700171 Take-Up Bearing, Radial Ball, Steel Insert, 4 Inch Size Bore, Cast Iron Housing
Get it by Wednesday, Jun 18
€6,102.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Take-Up Bearing |
| Bearing Insert Material | Steel |
| Bearing Insert Type | Radial Ball |
| Bore Dia. | 4" |
| Compatible Frame | STH 52 THRU 55-12 DZU |
| Housing Material | Cast Iron |
| Max. Temp. | 220°F |
| Mfr. Series | MST Series |
| Min. Temp. | -20°F |
| Overall Height | 9 3/8" |
| Overall Length | 11 7/8" |
| Overall Width | 3 1/2" |
| Shaft Locking Type | Set Screws |
| Ability To Relubricate | Yes |
| Adjusting Screw Clearance Hole Diameter | 1 22/25" |
| Adjusting Screw Square Nut Seat Height | 2 22/25" |
| Base To Center Height | 7.13" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Bearing Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bore Diameter | 4" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Carriage Bolt Size | 1 1/2" |
| Centerline To Outermost Bearing Face | 2.683" |
| Dynamic Load Capacity | 29905 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Style | Take Up Block |
| Housing Type | Take Up Block, Wide Slot |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 5.17" |
| Insert | 3-4 |
| Length Through Bore | 4.623" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1700 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Width | 4.63" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | MST |
| Size Code | 2-43 |
| Slot Length | 6 1/2" |
| Slot Spacing | 8 3/8" |
| Slot Width | 1.813" |
| Static Load Rating | 23553 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0986 cPS |
| Vibration Frequency Outer Ring Defect | 0.0681 cPS |
| Vibration Frequency Roller Spin | 0.044 cPS |
| Ship weight (kg) | 21.42 |
| Ship height (cm) | 25.1 |
| Ship length (cm) | 43.82 |
| Ship width (cm) | 12.4 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
MST-23 | €637.82 |
