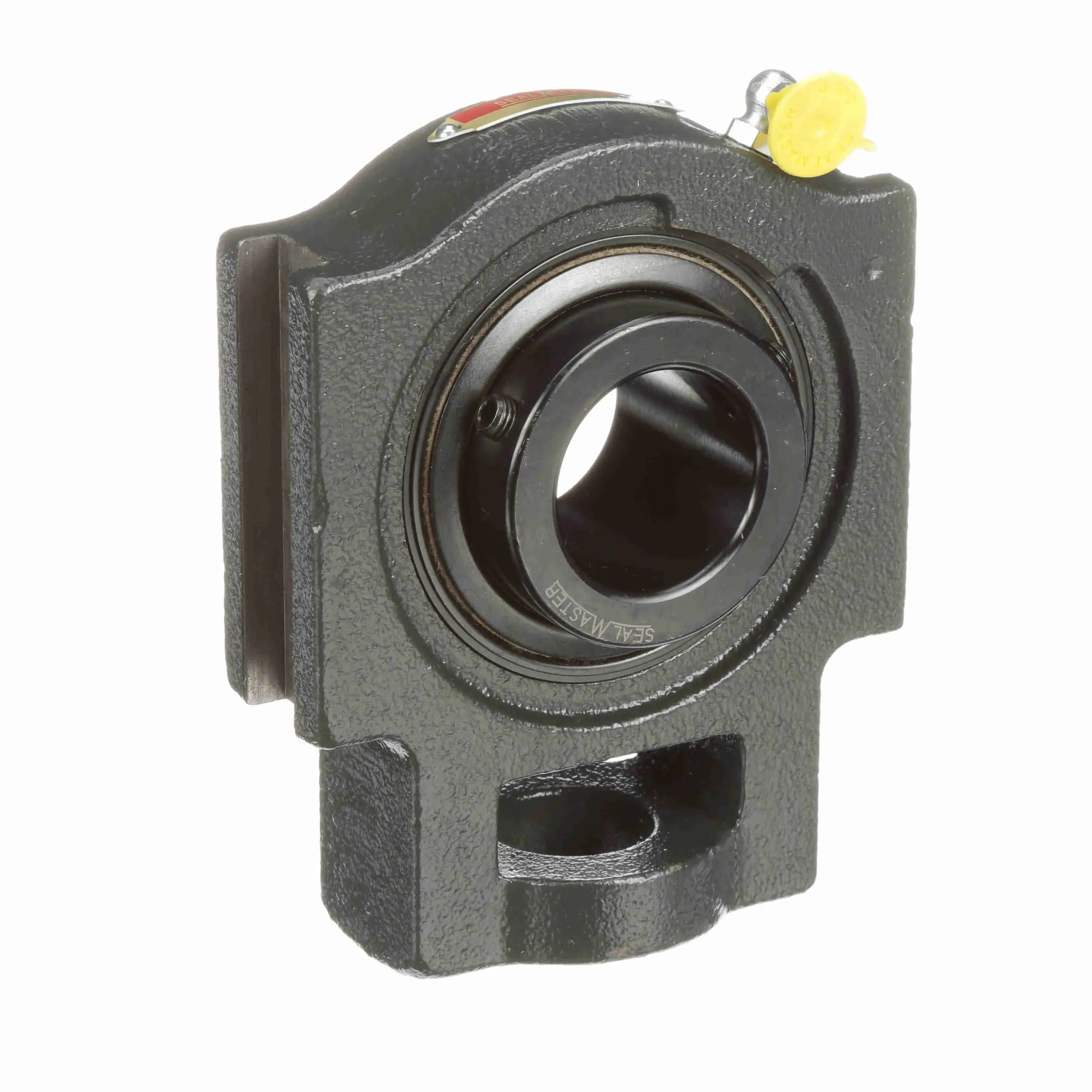

| Item | Take-Up Bearing |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bore Dia. | 1.438" |
| Compatible Frame | STH 24 THRU 28-12 DZU |
| Features | B-Type Seals Or L3 Triple Lip Seals Available For Extra Sealing Needs, Wide Inner Race Bearing With Greater Load Carrying Capacity Than Standard Duty |
| Housing Material | Stainless Steel |
| Included Bearing | UCX07-23 |
| Max. Temp. | 220°F |
| Mfr. Series | MST Series |
| Min. Temp. | -20°F |
| Overall Height | 4 1/2" |
| Overall Length | 5.687" |
| Overall Width | 2 1/8" |
| Resistance Properties | Corrosion Resistant |
| Shaft Locking Type | Set Screws |
| Ability To Relubricate | Yes |
| Adjusting Screw Clearance Hole Diameter | 1.13" |
| Adjusting Screw Square Nut Seat Height | 1.94" |
| Base To Center Height | 3 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Bearing Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bore Diameter | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Carriage Bolt Size | 3/4" |
| Centerline To Outermost Bearing Face | 1.188" |
| Dynamic Load Capacity | 7340 lbs. |
| End Cap | No |
| Expansion Type | Fixed |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Take Up Block |
| Housing Type | Take Up Block, Wide Slot |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.063" |
| Insert | 3-17 |
| Length Through Bore | 1.938" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 4150 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Series | MST |
| Setscrew Torque | 125 lbs.-in. to 165 lbs.-in. |
| Size Code | 2-19 |
| Slot Spacing | 4" |
| Slot Width | 0.688" |
| Static Load Rating | 4467 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0909 cPS |
| Vibration Frequency Outer Ring Defect | 0.0591 cPS |
| Vibration Frequency Roller Spin | 0.0376 cPS |
| Ship weight (kg) | 2.79 |
| Ship height (cm) | 5.87 |
| Ship length (cm) | 11.76 |
| Ship width (cm) | 19.05 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
MST-64 | €6,102.00 |
