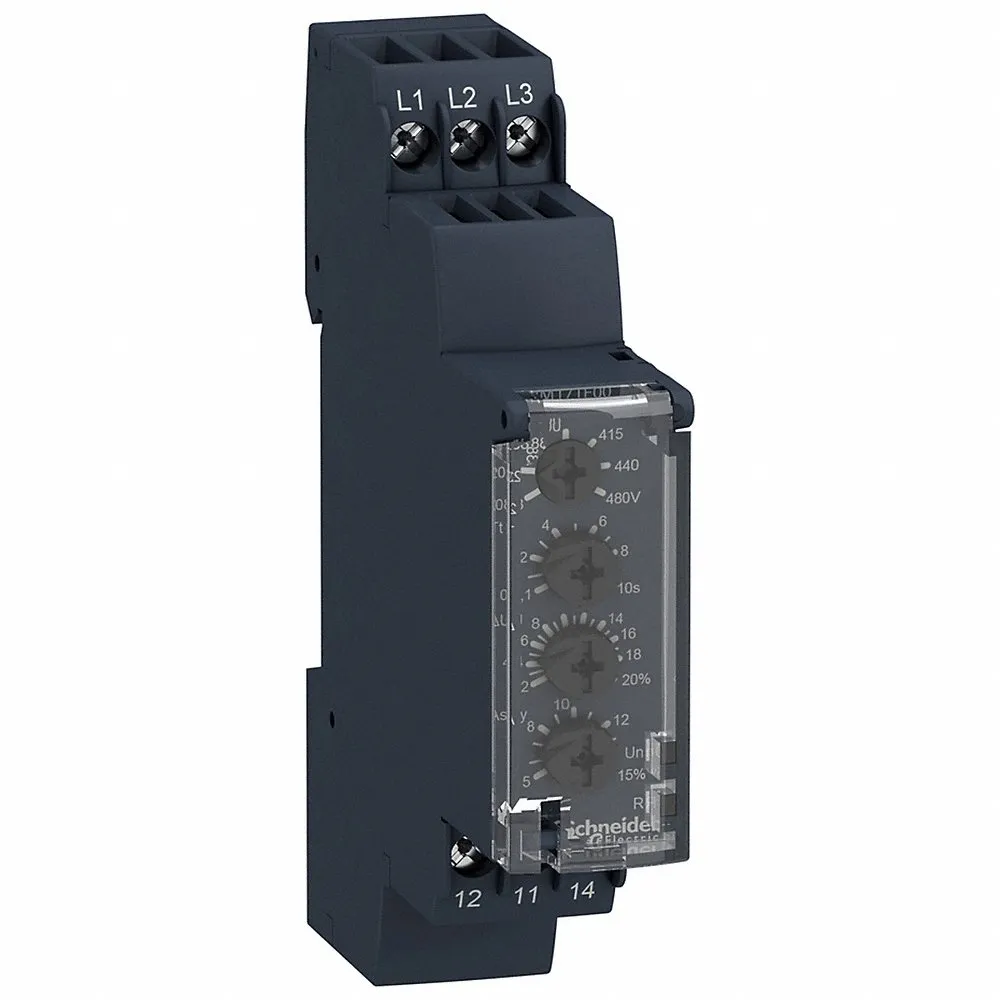

| Item | Voltage Sensing Relay |
| Base Shape | Square |
| Body Depth | 2 21/25" |
| Body Height | 3.54" |
| Body Width | 0.69" |
| Body Width - Relay | 0.69" |
| Current Rating | 5A |
| Dc Contact Rating | 5A @ 12V |
| Drop-out Range | -10% to +10% |
| Electrical Connection Type | Screw |
| Input Voltage | 12V DC |
| Ip Rating | IP20, IP30 |
| Max. Switching Amps | 5A |
| Max. Switching Capacity | 1250 VA |
| Max. Switching Current | 5A |
| Mechanical Operating Durability | 30000000 |
| Min. Switching Amps | 10 mA |
| Min. Switching Current | 10 mA |
| Monitored Parameters | Overcurrent, Undercurrent |
| Number Of Pins | 6 |
| Number Of Pins - Relay | 6 |
| Number Of Pins/terminals | 6 |
| Overall Depth | 2 21/25" |
| Overall Height - Relay | 3.65" |
| Pick Up Range | 7-20V DC |
| Power Consumption | 1 W |
| Relay Mounting Style | Din Rail |
| Trip Delay | 0.1 sec. to 10 sec. |
| Contact Rating (dc) | 5A @ 12V |
| Maximum Switching Capacity | 1250 VA |
| Maximum Switching Current | 5A |
| Minimum Switching Current | 10 mA |
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 8.99 |
| Ship length (cm) | 7.21 |
| Ship width (cm) | 1.75 |
| Country of Origin | ID |
| Product | Model | Price | |
|---|---|---|---|
 |
RM22UA31MR | €186.87 | |
 |
RM35UA11MW | €237.98 | |
 |
RM22UA21MR | €174.73 | |
 |
RM22UA33MT | €195.83 | |
 |
RM22UA23MR | €211.94 | |
 |
RM22UA22MR | €171.18 | |
 |
RM22UA32MR | €168.87 |
