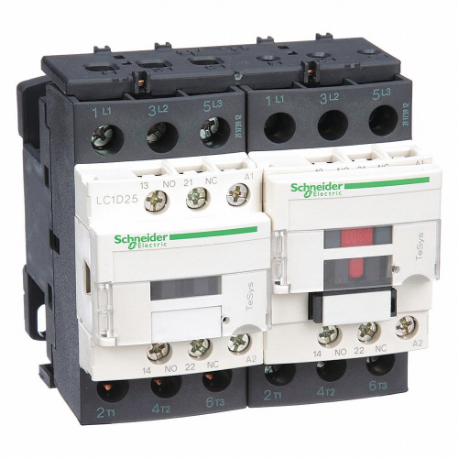

SCHNEIDER ELECTRIC LC2D25G7 Iec Magnetic Contactor, 120 VAC Coil Volts, 25 A
In Stock : 27 UnitsGet it by Friday, Jun 13
€397.40 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | IEC Magnetic Contactor |
| Action Type | Reversing |
| Application | Motor Control, Resistive Load |
| Aux. Contact Configuration | 1NO/1NC |
| Coil Technology | Without Built-In Suppressor Module |
| Coil Volts | 120V AC |
| Depth | 3.62" |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Frequency | 50/60 Hz |
| Front Cover | Mechanical , With |
| Full Load Amps-inductive | 25A |
| Full Load Amps-resistive | 40A |
| Height | 3.35" |
| Horsepower @ Three Phase (600 Vac) | 20 hp |
| Horsepower @ Three Phase - 480v Ac | 15 hp |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 208v | 5 hp |
| Hp @ 3 Phase - 240v | 7 1/2 hp |
| Hp @ 3 Phase - 480v | 15 hp |
| Hp @ 3 Phase - 575v | 20 hp |
| Impulse Withstand Voltage | 6 kV |
| Includes Auxiliary Contacts | Yes |
| Includes Protective Cover | Yes |
| Inrush Va | 70 VA |
| Mounts On | Plate, Rail |
| Non-overlap Time | 1.5 ms |
| Number Of Auxillary Contacts | 2 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Product Or Component Type | Reversing Contactor |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Reversible | Yes |
| Reversing Capability | Reversing |
| Terminal Connection Type | Screw Clamp Terminals |
| Width | 3.54" |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 120V AC |
| Contactor Style | IEC |
| Electrical Operating Durability | 1400000, 1650000 |
| Full Load Current - Inductive | 25A |
| Full Load Current - Resistive | 40A |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Single Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 208v Ac | 5 hp |
| Horsepower @ Three Phase - 240v Ac | 7 1/2 hp |
| Horsepower @ Three Phase - 600v Ac | 20 hp |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 15000000 |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Overall Depth | 3.62" |
| Overall Height | 3.35" |
| Overall Width | 3.54" |
| Series | TeSys Deca |
| Standards | BV, CCC, CSA, CSA C22.2 NO 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL LISTED |
| Wire Termination Type | Screw Clamp |
| Ship weight (kg) | 0.92 |
| Ship height (cm) | 8.51 |
| Ship length (cm) | 9.19 |
| Ship width (cm) | 8.99 |
| Country of Origin | FR |
