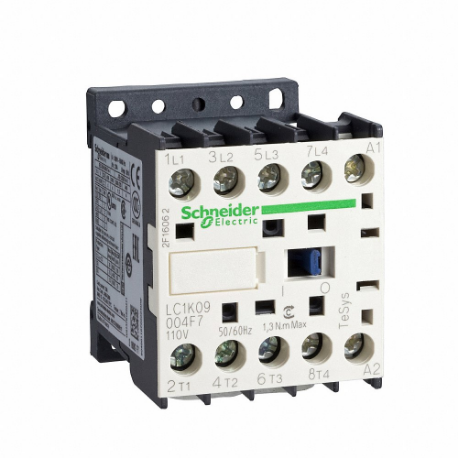

| Item | IEC Magnetic Contactor |
| Application | Resistive Load |
| Coil Volts | 110V AC |
| Depth | 2 6/25" |
| Device Application | Control |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 9A |
| Full Load Amps-resistive | 20A |
| Fuse Amps | 25A |
| Heat Dissipation | 1.3 W |
| Height | 2 7/25" |
| Hold Va | 4.5 VA |
| Impulse Withstand Voltage | 8 kV |
| Includes Auxiliary Contacts | No |
| Inrush Va | 30 VA |
| Mounts On | Plate, Rail |
| Number Of Auxillary Contacts | 0 |
| Number Of Normally Closed Main Contacts | 2 |
| Number Of Normally Open Main Contacts | 2 |
| Number Of Poles | 4 |
| Product Or Component Type | Contactor |
| Reversible | No |
| Terminal Connection Type | Screw Clamp Terminals |
| Tightening Torque | 0.8 N-m to 1.3 N-m |
| Watts Loss | 1.3 W |
| Width | 1.77" |
| Working Height | 6561.68 ft. |
| Auxiliary Contacts Included | None |
| Coil Voltage | 110V AC |
| Contactor Style | IEC |
| Electrical Operating Durability | 180000 |
| Full Load Current - Inductive | 9A |
| Full Load Current - Resistive | 20A |
| Integrated Surge Suppression | No |
| Ip Rating | IP22 |
| Main Power Pole Contact Form | 2NO/2NC |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 10000000 |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Overall Depth | 2.24" |
| Overall Height | 2 7/25" |
| Overall Width | 1.77" |
| Reversing Capability | Non-Reversing |
| Series | TeSys K Series |
| Standards | BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL LISTED, VDE 0660 |
| Wire Termination Type | Screw Clamp |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 5.79 |
| Ship length (cm) | 5.69 |
| Ship width (cm) | 4.5 |
