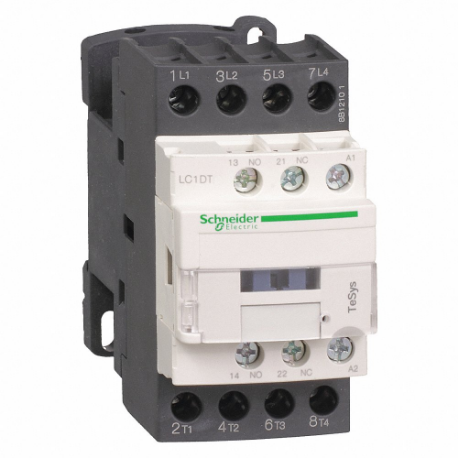

| Item | IEC Magnetic Contactor |
| Application | Resistive Load |
| Coil Technology | Built-In Bidirectional Peak Limiting Diode Suppressor |
| Coil Volts | 24V DC |
| Depth | 4.21" |
| Embedded Surge Suppressor | Yes |
| Enclosure Nema Rating | No Enclosure |
| Features | Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 32A |
| Full Load Amps-resistive | 32A |
| Height | 3.58" |
| Impulse Withstand Voltage | 6 kV |
| Includes Auxiliary Contacts | Yes |
| Includes Protective Cover | Yes |
| Mounts On | Plate, Rail |
| Nema Enclosure Material | Not Applicable |
| Non-overlap Time | 1.5 ms |
| Number Of Auxillary Contacts | 2 |
| Number Of Normally Open Main Contacts | 4 |
| Number Of Poles | 4 |
| Product Or Component Type | Contactor |
| Protective Cover | With |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Reversible | No |
| Terminal Connection Type | Screw Clamp Terminals |
| Time Constant | 28 ms |
| Width | 1.77" |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 24V DC |
| Contactor Style | IEC |
| Electrical Operating Durability | 1000000 |
| Full Load Current - Inductive | 32A |
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 4NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 30000000 |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Overall Depth | 4.21" |
| Overall Height | 3.58" |
| Overall Width | 1.77" |
| Reversing Capability | Non-Reversing |
| Series | TeSys Deca |
| Standards | BV, CCC, CSA, CSA C22.2 NO 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL LISTED |
| Wire Termination Type | Screw Clamp |
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 9.09 |
| Ship length (cm) | 10.69 |
| Ship width (cm) | 4.5 |
