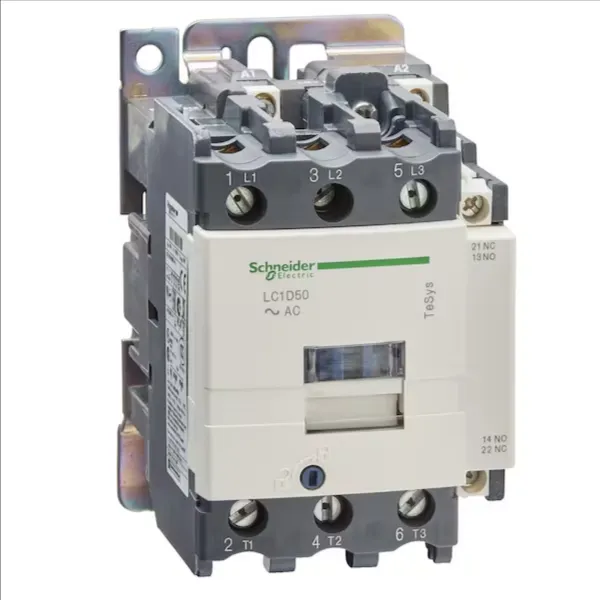

| Item | IEC Magnetic Contactor |
| Application | Resistive Load |
| Coil Technology | Without Built-In Bidirectional Peak Limiting Diode Suppressor |
| Coil Volts | 24V |
| Depth | 120 mm |
| Features | Without Built-In Bi-Directional Peak Limiting Diode Suppressor |
| Full Load Amps-inductive | 50A |
| Full Load Amps-resistive | 80A |
| Height | 122 mm |
| Hp @ 1 Phase - 240v | 10 hp |
| Hp @ 3 Phase - 208v | 15 hp |
| Hp @ 3 Phase - 240v | 15 hp |
| Hp @ 3 Phase - 480v | 40 hp |
| Hp @ 3 Phase - 575v | 40 hp |
| Impulse Withstand Voltage | 6 kV |
| Includes Protective Cover | Yes |
| Mounting Support | Rail |
| Mounts On | Plate, Rail |
| Non-overlap Time | 1.5 ms |
| Number Of Poles | 3 |
| Product Or Component Type | Contactor |
| Protective Cover | With |
| Width | 55 mm |
| Coil Voltage | 24V AC |
| Full Load Current (a) - Inductive | 50A |
| Ship weight (kg) | 1.4 |
| Ship height (cm) | 12.2 |
| Ship length (cm) | 12 |
| Ship width (cm) | 5.5 |
| Country of Origin | CZ |
