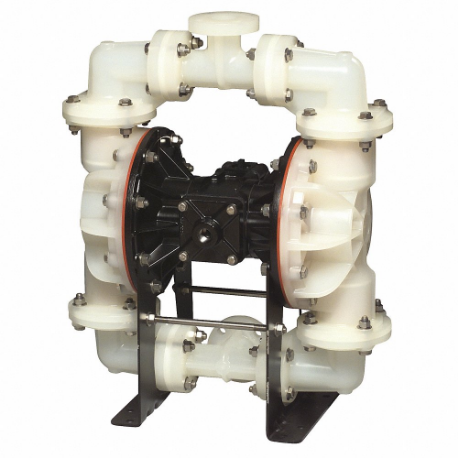

| Item | Double Diaphragm Pump |
| Air Consumption | 95 SCFM |
| Air Consumption (maximum) | 95 SCFM |
| Air Intake Connection Size | 3/4" |
| Air Intake Pressure (maximum) | 100 psi |
| Body Material | Polypropylene |
| Center Section Material | Polypropylene |
| Check Seat Material | Polypropylene |
| Connection Size | 1 1/2" |
| Connection Style | Flange |
| Connection Type | Flanged |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Feet Of Head (maximum) | 231 ft. |
| Flow Rate (maximum) | 100 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 125 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 60.7 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 78.2 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 94.1 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 111.8 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| For Use With Potable Systems | No |
| Housing Material | Polypropylene |
| Inlet Size | 3/4" |
| Inlet Type | FNPT |
| Inlet/outlet Size | 1 1/2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Flange , Flanged |
| Max. Dia. Solids | 1/4" |
| Max. Flow Rate | 100 GPM |
| Max. Head | 231 ft. |
| Max. Media Temp. | 180°F |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 1/4" |
| Media Discharge Connection Size | 1 1/2" |
| Media Discharge Connection Type | Flange |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 1 1/2" |
| Media Intake Connection Type | Flange |
| Media Intake Location | Bottom, Center |
| Non-wetted Housing Material | Polypropylene |
| Operating Pressure (maximum) | 100 psi |
| Operation Type | Air Operated |
| Overall Height | 28 4/5" |
| Overall Length | 13" |
| Overall Width | 23" |
| Power Source | Air |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Self-priming Wet | 15 ft. |
| Solid Diameter (maximum) | 1/4" |
| Valve Material | PTFE |
| Valve Type | Ball |
| Wetted Housing Material | Polypropylene |
