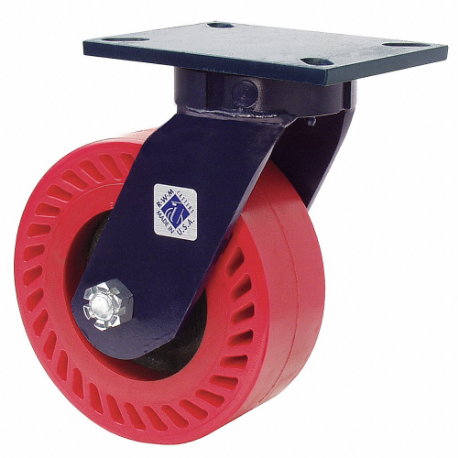

| Item | Plate Caster |
| Application | Aerospace Tooling, Automotive Assembly Lines |
| Brake Type | Side Pedal Brake |
| Caster Brake Included | Yes |
| Caster Core Material | Cast Iron |
| Caster Material | Steel |
| Caster Plate Hole Pattern | A |
| Caster Shape | Standard |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Core Color | Black |
| Extended Lead | Yes |
| Frame Finish | Blue Powder Coat |
| Frame Material | Steel |
| Includes | Complete Caster With Brake |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Load Rating | 2500 lbs. |
| Load Rating Range | 1000 lbs. to 2999 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 10 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Plate Caster Bolt Hole Pattern | A |
| Replacement Wheel | Mfr. No. UIR-0830-12 |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Roller |
| Swivel Radius | 7 1/8" |
| Thread Guards | No |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Color | Blue |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 8" |
| Wheel Width | 3" |
| Wheel/tread Color | Blue |
| Wheel/tread Hardness | 92 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Caster Brake Type | Side Pedal Brake |
| Caster Frame Material | Steel |
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" x 7 1/4" ( A ) |
| Standards | ICWM, ISO 9001:2015 |
| Wheel Dia. | 8" |
| Wheel/tread Material | Polyurethane |
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
75-UIR-1030-R | €505.61 | |
 |
75-CIR-1030-R | €374.93 | |
 |
75-FSR-1030-R | €572.64 | |
 |
75-NYB-1030-R | €873.63 | |
 |
75-UIR-1030-S | €577.00 | |
 |
75-NYB-1030-S | €1,039.36 | |
 |
75-CIR-1030-S | €374.67 |
