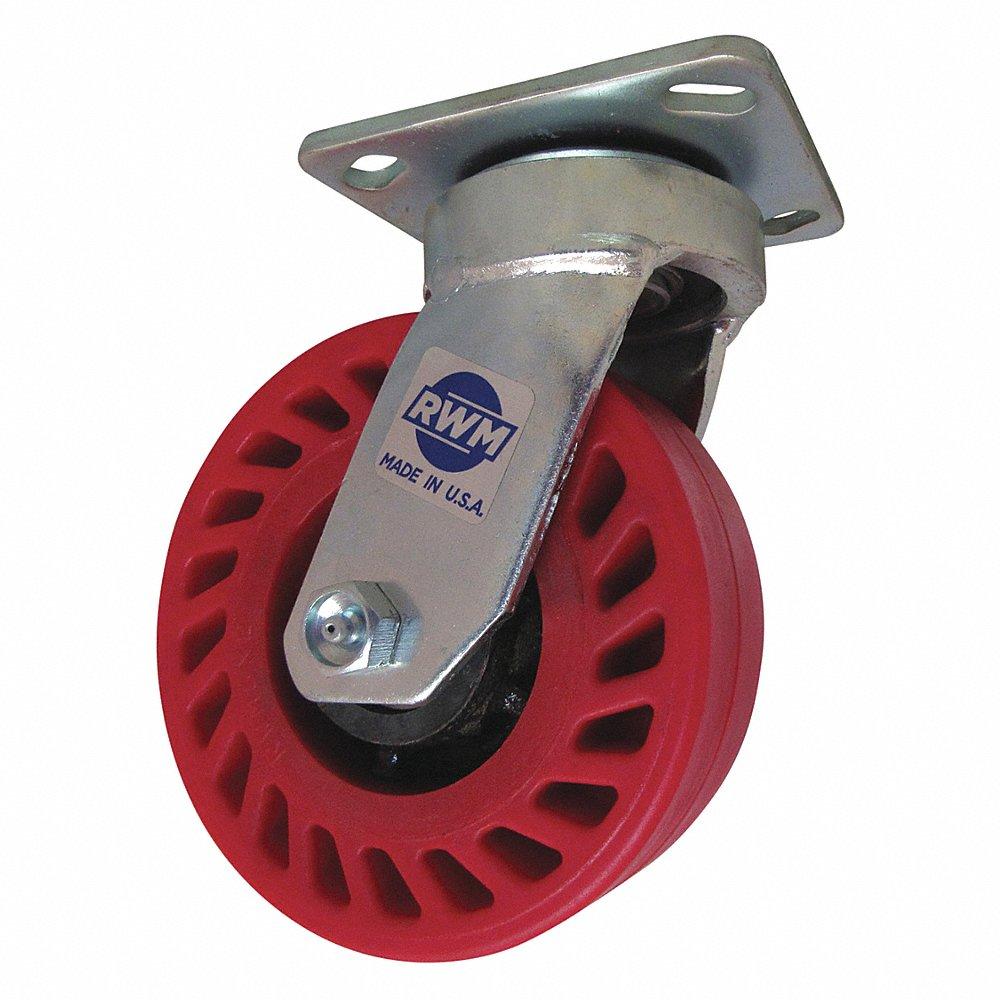

| Item | Plate Caster |
| Application | Dollies, Waste Disposal Trucks, Floor Trucks, And Shop Carts |
| Brake Type | No Brake Included |
| Caster Brake Included | No |
| Caster Core Material | Cast Iron |
| Caster Material | Steel |
| Caster Plate Hole Pattern | B |
| Caster Shape | Standard |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Core Color | Black |
| Extended Lead | No |
| Features | Maintenance Free |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Includes | Complete Caster |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2.625" x 3" |
| Load Rating | 1000 lbs. |
| Load Rating Range | 1000 lbs. to 2999 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 7 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4.5" |
| Mounting Plate Size | 4.5" x 4" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3.625" |
| Outside Bolt Hole Spacing | 3" x 3 5/8" |
| Plate Caster Bolt Hole Pattern | B |
| Replacement Wheel | Mfr. No. UOB-0620-08 |
| Swivel Lock Type | No Lock Included |
| Thread Guards | No |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Red |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Wheel/tread Color | Red |
| Wheel/tread Hardness | 95 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Mounting Plate Size & Bolt Hole Pattern | 4" x 4 1/2" ( B ) |
| Standards | ICWM |
| Wheel Dia. | 6" |
| Wheel/tread Material | Polyurethane |
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
48-SWB-0520-R | €52.25 | |
 |
48-RAB-0620-R-EHT | €83.43 | |
 |
68-GTB-0820-R | €191.96 | |
 |
68-UIB-0820-R-INF | €278.95 | |
 |
68-UAB-0821-R-92A | €187.80 | |
 |
68-GTB-0820-S | €340.84 | |
 |
68-UAB-0821-S-92A | €338.34 |
