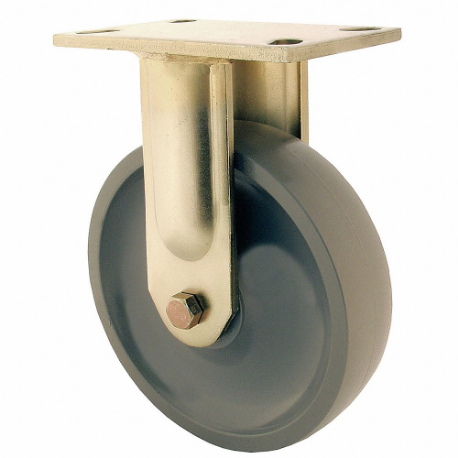

| Item | Plate Caster |
| Application | Dollies, Tow Lines, Platform Trucks, And Towline Fixtures |
| Brake Type | No Brake Included |
| Caster Brake Included | No |
| Caster Core Material | Rubber |
| Caster Material | Steel |
| Caster Plate Hole Pattern | B |
| Caster Shape | Standard |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Core Color | Gray |
| Extended Lead | No |
| Features | Maintenance Free |
| Frame Finish | Gold Zinc Plated |
| Frame Material | Steel |
| Includes | Complete Caster |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2.438" x 4.938" |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Rating | 1800 lbs. |
| Load Rating Range | 1000 lbs. to 2999 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 10 1/8" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 4 1/2" x 6 1/2" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Plate Caster Bolt Hole Pattern | B |
| Replacement Wheel | GTB-0820-08 |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball, Single Ball |
| Thread Guards | No |
| Tread Material, Wheel Material | Elastomer |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Blue |
| Wheel Core Material | Rubber |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Wheel/tread Color | Blue |
| Wheel/tread Hardness | 75 Shore D |
| Wheel/tread Hardness Rating | Hard |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" x 6 1/2" ( A ) |
| Standards | ICWM, ISO 9001:2015 |
| Wheel Dia. | 8" |
| Wheel/tread Material | Elastomer |
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Price | |
|---|---|---|---|
 |
48-SWB-0520-R | €52.25 | |
 |
48-RAB-0620-R-EHT | €83.43 | |
 |
68-UIB-0820-R-INF | €278.95 | |
 |
68-UAB-0821-R-92A | €187.80 | |
 |
68-GTB-0820-S | €340.84 | |
 |
68-UAB-0821-S-92A | €338.34 | |
 |
48-RAB-0820-R-EHT | €172.79 |
