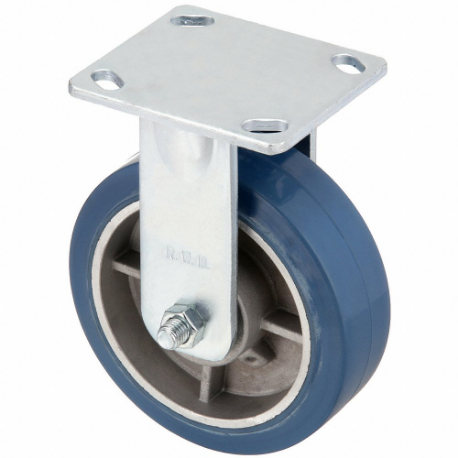

| Item | Plate Caster |
| Application | General Manufacturing Dollies, Rolling Support Equipment |
| Caster Brake Included | No |
| Caster Core Material | Aluminum |
| Caster Material | Steel |
| Caster Plate Hole Pattern | B |
| Caster Shape | Standard |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Core Color | Silver |
| Extended Lead | No |
| Features | Hardened Raceway |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Includes | Complete Caster |
| Inside Bolt Hole Spacing | 2.625" x 3" |
| Load Rating | 820 lbs. |
| Load Rating Range | 300 lbs. to 999 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Plate Size | 4.5" x 4" |
| Mounting Plate Size | 4" x 4.5" |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3.625" |
| Outside Bolt Hole Spacing | 3" x 3 5/8" |
| Plate Caster Bolt Hole Pattern | B |
| Replacement Wheel | Mfr. No. RAB-0620-08 |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Thread Guards | No |
| Tread Material, Wheel Material | Rubber |
| Tread Shape | Standard |
| Wheel Color | Blue |
| Wheel Core Material | Aluminum |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Caster Frame Material | Steel |
| Mounting Plate Size & Bolt Hole Pattern | 4" x 4 1/2" |
| Standards | ICWM |
| Wheel Dia. | 6" |
| Wheel/tread Material | Rubber |
| Ship weight (kg) | 2.37 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Model | Item | Price | |
|---|---|---|---|
| S45-SWB-0420-R | Plate Caster | €129.55 | |
| S45-PNC-0420-S | Plate Caster | €116.24 | |
| S45-PNC-0420-R | Plate Caster | €92.06 | |
| S45-SWB-0420-S | Plate Caster | €153.73 | |
| S45-SWB-0520-R | Plate Caster | €141.37 | |
| S45-PNC-0520-S | Plate Caster | €124.25 | |
| S45-PNC-0520-R | Plate Caster | €98.90 |
