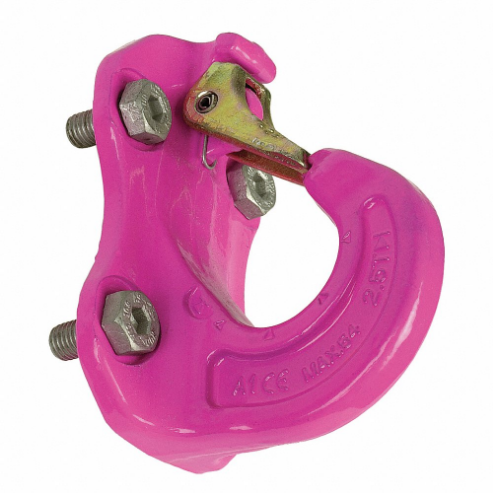

RUD CHAIN 8502238 Excavator Hook 15000 Lb. Load Cap
Get it by Tuesday, Jun 17
€903.85 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Excavator Hook |
| Attachment Type | Bolt On |
| Dimension A | 0.516" |
| Dimension B | 6 1/8" |
| Dimension C | 8.187" |
| Nominal Size | M20 |
| Nominal Wll (kg) | 6700 Kg |
| Pitch | 51 mm |
| Trade Size | 2 1/2" |
| Working Load Limit | 15000 lbs. |
| Color | Pink |
| Compatible Chain Grade | Grade 100 |
| Finish | Painted |
| Hardware Included | Castle Nut, Cotter Pin, Lock Nut |
| Hook Grade | 100 |
| Hook Opening Width | 1 5/8" |
| Hook Product Type | Excavator Hook |
| Lifting Capability | For Lifting |
| Material | Steel |
| Maximum Operating Temperature | 662°F |
| Minimum Operating Temperature | -40°F |
| Overall Length | 8 1/8" |
| Overall Width | 4 3/4" |
| Standards | DIN EN 1677, DIN EN 818 |
| Thread Size | M20 |
| Usable Length | 8 1/4" |
| Visual Indicators | Deformation Markings |
| Ship weight (kg) | 6.01 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 20.64 |
| Ship width (cm) | 12.07 |
| HS code | 8431310060 |
| Country of Origin | DE |
