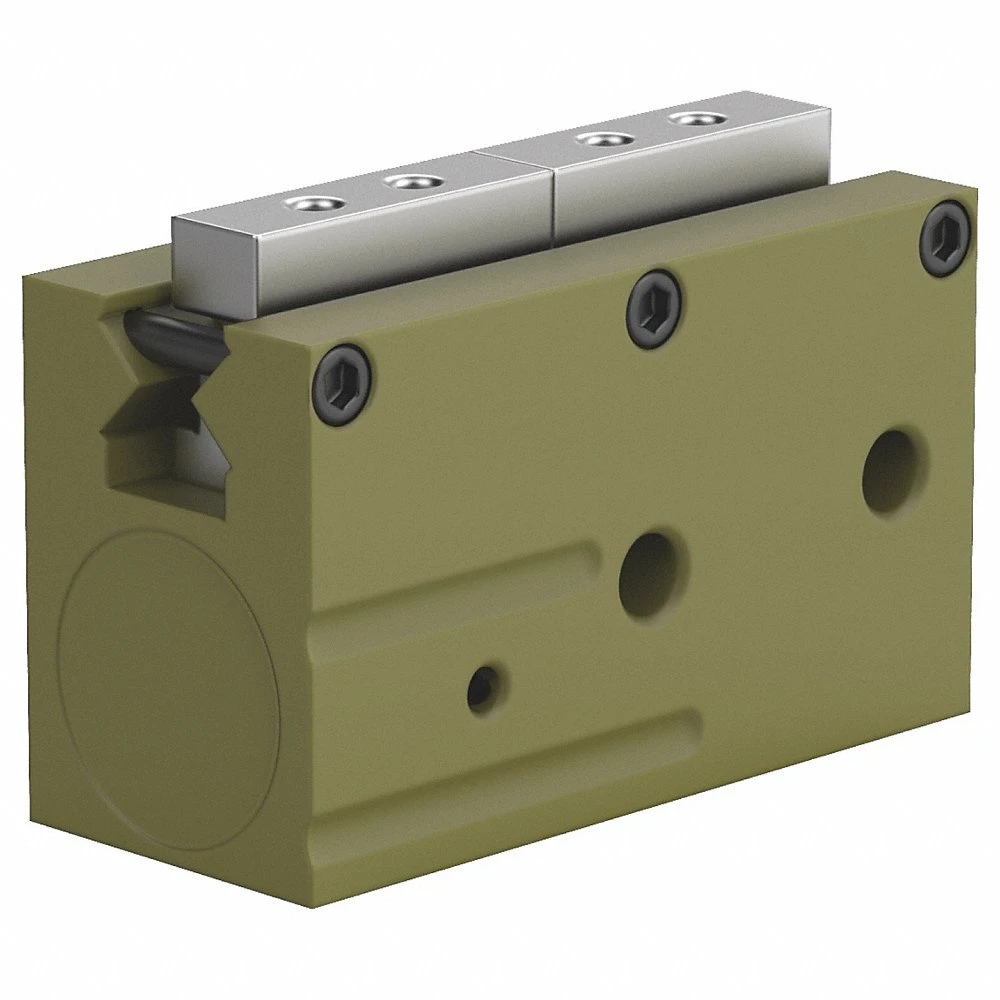

DESTACO RPL-1M Parallel Gripper, Parallel, 44 mm Open Width, 44 mm Closed Width, Double, M5 Port Size
Get it by Tuesday, Jun 17
€305.39 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Gripper |
| Action Type | Double |
| Bore Size | 11.1 mm |
| Closed Width | 44 mm |
| Dimension A | 44.5 mm |
| Dimension C | 11 mm |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Height | 29.5 mm |
| Length | 44.5 mm |
| Max. Pressure | 100 psi |
| Mfr. Series | RPL/RPLC Series |
| Opening Width | 44 mm |
| Opening/closing Stroke | 6.4 mm |
| Operating Temp. Range | -30°F to +180°F |
| Port Size | M5 |
| Seal Material | Buna N |
| Size | 1 |
| Total Grip Force | 116N |
| Type | Parallel |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Pressure | 4.3 psi |
| Minimum Operating Temperature | -35°C |
| Open Width | 44.5 mm |
| Overall Height | 29.5 mm |
| Overall Length | 19.1 mm |
| Overall Width | 44.5 mm |
| Series | RPL Series |
| Stroke Length | 6.4 mm |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.95 |
| Ship length (cm) | 1.91 |
| Ship width (cm) | 4.45 |
| Country of Origin | US |
