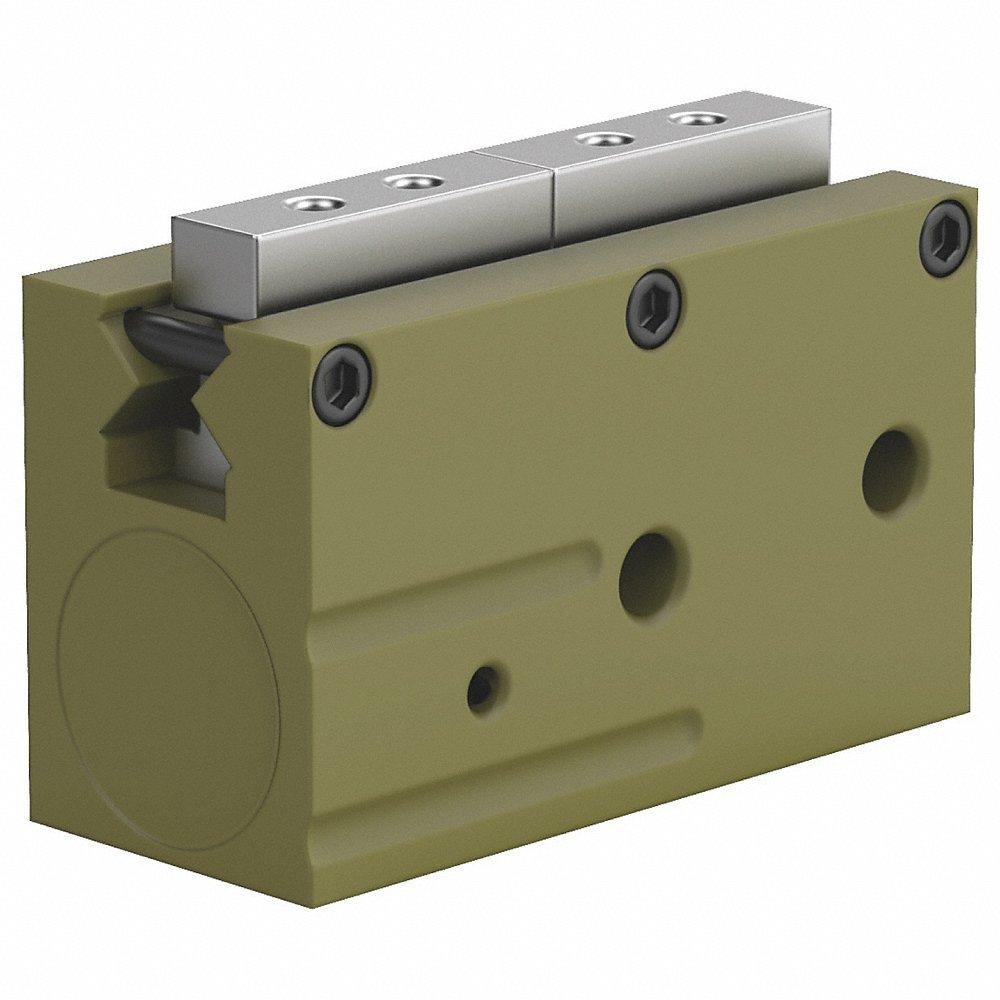

DESTACO RPL-1 Parallel Gripper, Parallel, 1.75 Inch Open Width, 1.5 Inch Closed Width, Double
Get it by Friday, Jun 13
€305.39 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Gripper |
| Action Type | Double |
| Bore Size | 0.438" |
| Closed Width | 1 1/2" |
| Dimension A | 1 3/4" |
| Dimension C | 0.45" |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Height | 1.163" |
| Length | 1 3/4" |
| Max. Pressure | 100 psi |
| Mfr. Series | RPL/RPLC Series |
| Opening Width | 1 3/4" |
| Opening/closing Stroke | 1/4" |
| Operating Temp. Range | -30°F to +180°F |
| Port Size | M5 |
| Seal Material | Buna N |
| Size | 1 |
| Total Grip Force | 26 lbf. |
| Type | Parallel |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 180°F |
| Minimum Operating Pressure | 5 psi |
| Minimum Operating Temperature | -30°F |
| Open Width | 1 3/4" |
| Overall Height | 1 1/8" |
| Overall Length | 3/4" |
| Overall Width | 1 3/4" |
| Series | RPL Series |
| Stroke Length | 1/4" |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.86 |
| Ship length (cm) | 1.91 |
| Ship width (cm) | 4.45 |
| Country of Origin | US |
