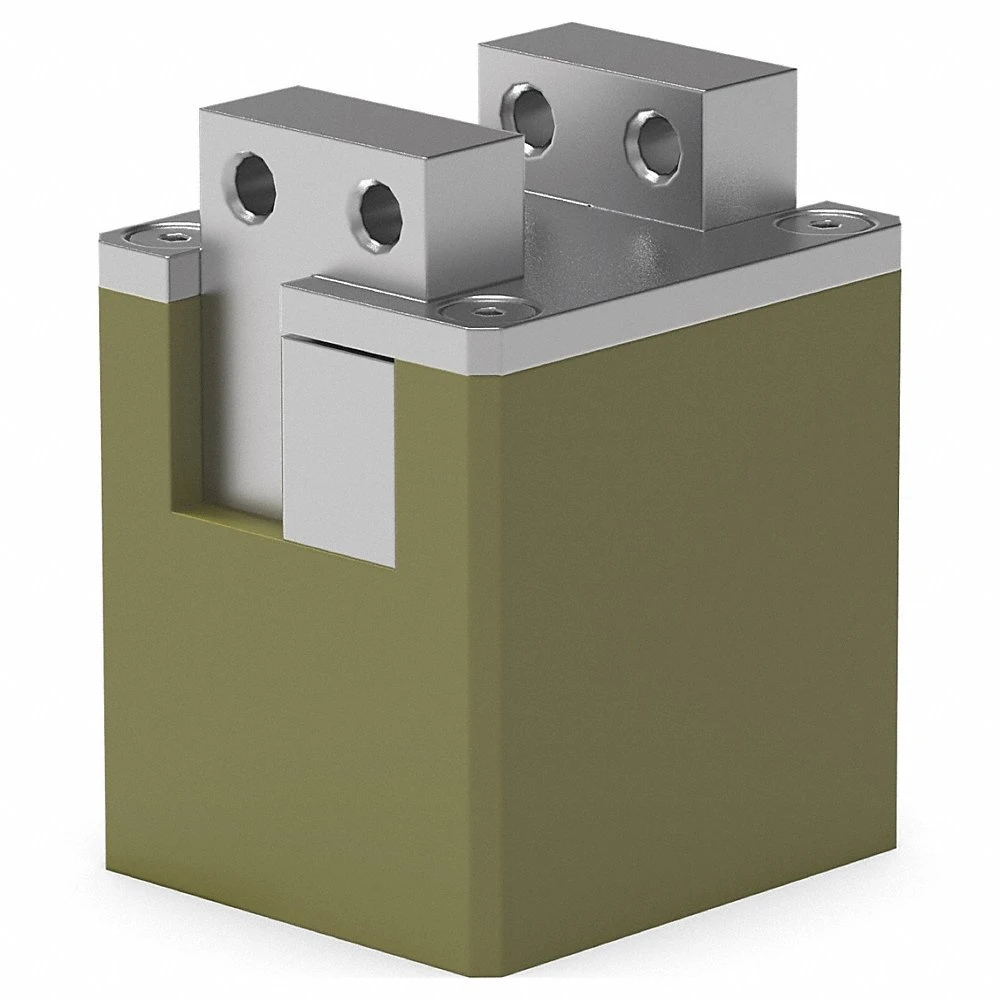

DESTACO RP-5M Parallel Gripper, Parallel, 29 mm Open Width, 24 mm Closed Width, Double, M5 Port Size, RP
Get it by Tuesday, Jun 17
€422.84 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Gripper |
| Action Type | Double |
| Bore Size | 19.1 mm |
| Closed Width | 24 mm |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Max. Pressure | 100 psi |
| Mfr. Series | RP Series |
| Opening Width | 29 mm |
| Opening/closing Stroke | 4.1 mm |
| Operating Temp. Range | -30°F to +180°F |
| Port Size | M5 |
| Seal Material | Buna N |
| Size | 5 |
| Total Grip Force | 156N |
| Type | Parallel |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Pressure | 40 psi |
| Minimum Operating Temperature | -35°C |
| Open Width | 28.6 mm |
| Overall Height | 25.4 mm |
| Overall Length | 25.4 mm |
| Overall Width | 28.6 mm |
| Series | RP Series |
| Stroke Length | 4.1 mm |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.86 |
| Country of Origin | US |
