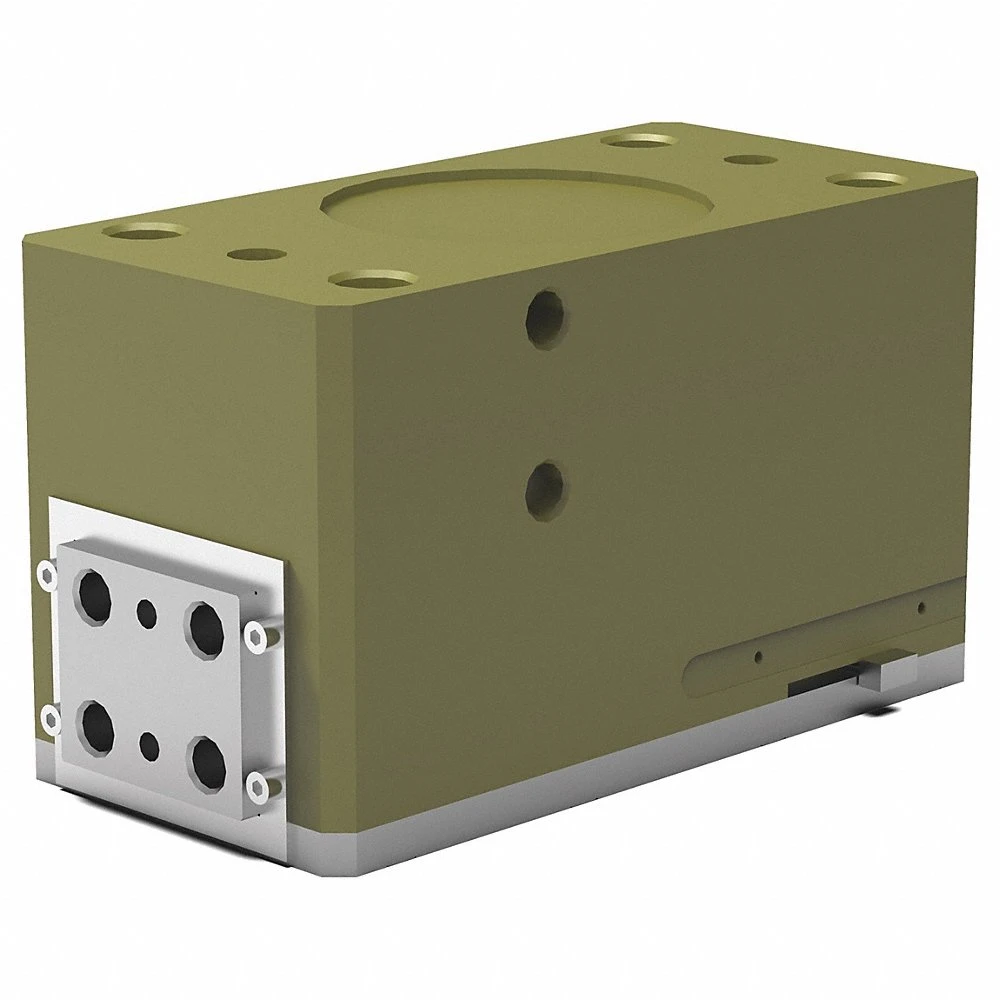

| Item | Gripper |
| Action Type | Double |
| Bore Size | 88.9 mm |
| Closed Width | 216 mm |
| Dimension A | 266 mm |
| Dimension B | 216 mm |
| Grip Force Rated Pressure | 100 psi |
| Gripping Type | Parallel |
| Height | 100.3 mm |
| Length | 8.453 mm |
| Max. Pressure | 100 psi |
| Mfr. Series | RP Series |
| Opening Width | 266 mm |
| Opening/closing Stroke | 50.8 mm |
| Operating Temp. Range | -30°F to +180°F |
| Port Size | g1/4" |
| Seal Material | Buna N |
| Size | 19 |
| Total Grip Force | 2669N |
| Type | Parallel |
| Air Inlet Type | NPT |
| Body Material | Aluminum |
| Finger Material | Carbon Steel |
| Maximum Operating Pressure | 100 psi |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Pressure | 40 psi |
| Minimum Operating Temperature | -35°C |
| Open Width | 266 mm |
| Overall Height | 100.3 mm |
| Overall Length | 100.3 mm |
| Overall Width | 216 mm |
| Series | RP Series |
| Stroke Length | 50.8 mm |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 10.03 |
| Ship length (cm) | 10.03 |
| Ship width (cm) | 21.6 |
| Country of Origin | US |
